Text to Speech

1 Introduction to Text-to-Speech (TTS)

Text-to-speech (TTS) is the process of converting written language into spoken output. Modern systems (Siri, Google Translate, Alexa, ChatGPT etc.) can produce fluent speech that sounds almost human. Under the hood, though, there’s a lot going on:

• Front end: The text has to be normalized (e.g., abbreviations spelled out etc.), converted into a sequence of sounds (orthography to phonemic transcription), and marked for prosody (intonation, stress, pauses).

• Back end: The sound sequence has to be turned into an acoustic signal. Early systems did this by cutting and stitching together snippets of recorded speech; modern systems use neural models like Tacotron or VITS that predict spectrograms and generate waveforms with vocoders.

  Data needs: A real system is trained on hours of speech (5–20+), aligned at the segment level (every phone or syllable has precise time boundaries). Without that, the system can’t learn natural durations or coarticulation. I have 20+ hours of speech, but it is not transcribed at the segment level. If anyone wants to do a TTS for Media Lengua, that will likely also work for Kichwa, for their masters thesis, this is a great project!! This would likely involve 2 field trips - one to collect data, and one to present the system to the community. If this interests you, let me know!



1.1 What We Will Do in this Module

We don’t have the time to build a full TTS system. Instead, we’ll build a toy version that highlights the core ideas:
Collect data: we’ll take a short set of utterances from one speaker of Media Lengua.
Segment speech manually: each student will mark up ~200–300 tokens at the segmental level.
Front end: we’ll use a simple set of rules to convert text to IPA.
Back end: we’ll concatenate the recorded segments to “speak” new words and sentences.
Prosody: we’ll experiment with simple manipulations (stretching a vowel, raising pitch), but we likely won’t integrate this into the system.

The results will sound robotic and choppy—but that’s the point. You’ll hear why coarticulation, prosody, and data coverage are so important.

1.2 What Should Really Be Done

In a research or industry setting, a proper TTS system would require:
Large, high-quality corpus: 5–20 hours of clean speech from one speaker (or much more for multi-speaker systems).
Automatic forced alignment: software like the Montreal Forced Aligner to produce phone-level timings automatically.
Neural acoustic models: architectures such as Tacotron, FastSpeech, or VITS that learn to map phones to spectrograms.
Neural vocoders: models like HiFi-GAN or WaveNet that generate natural-sounding waveforms.
Evaluation: formal intelligibility and naturalness tests with human listeners.
This is far beyond what we can do in a 2-week-long module, but by working through our small-scale project you’ll see exactly where the bottlenecks are, and why modern systems require large datasets, specialized models, and serious computing.

1.3 Example systems

Google translate
MS Word
ChatGPT
Window’s default Text to Speech
Hello, this is a basic text to speech example.

Speak

2 Data Use Disclaimer

All language data provided for this module (and for any course activities) is confidential and shared strictly for instructional purposes.

• You may not upload, share, or distribute any of the audio files, transcripts, or annotations to any online platform or external service (e.g. GitHub, Google Drive, Dropbox, social media, etc.).

• The only permitted online location for these materials is Canvas, as uploaded by the instructor.

• You may store and work with the files locally on your personal device during the term.

• You are required to delete all copies of the data:
  • immediately if you withdraw from the course, and

  • at the end of the course upon completion of your final assignment.

Failure to follow these guidelines is a violation of course policy and of the ethical standards under which the data was collected.

3 Processing sound files

3.1 Module Part 1: Locating & Extracting Syllables/Segments

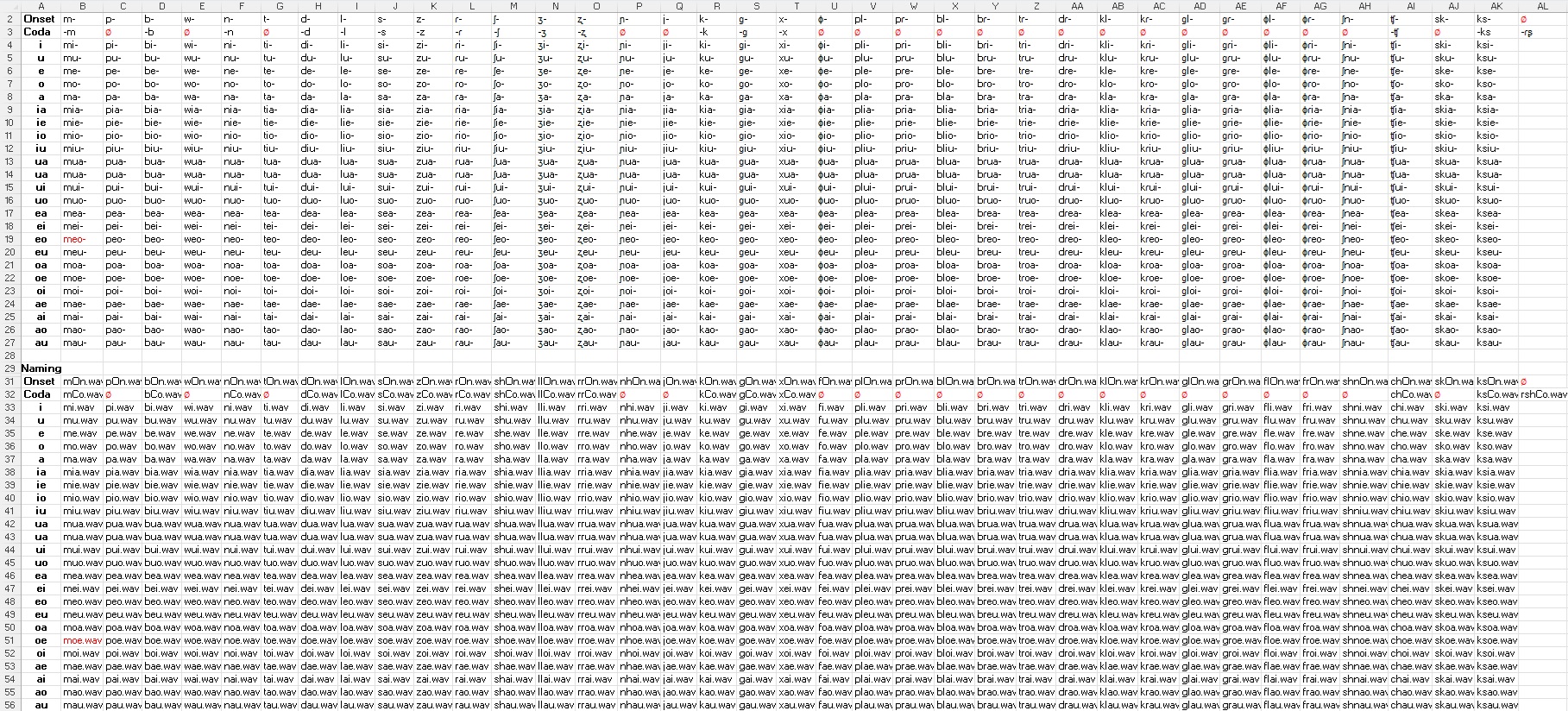

• Work with the syllable-segment matrix
  • Open the spreadsheet

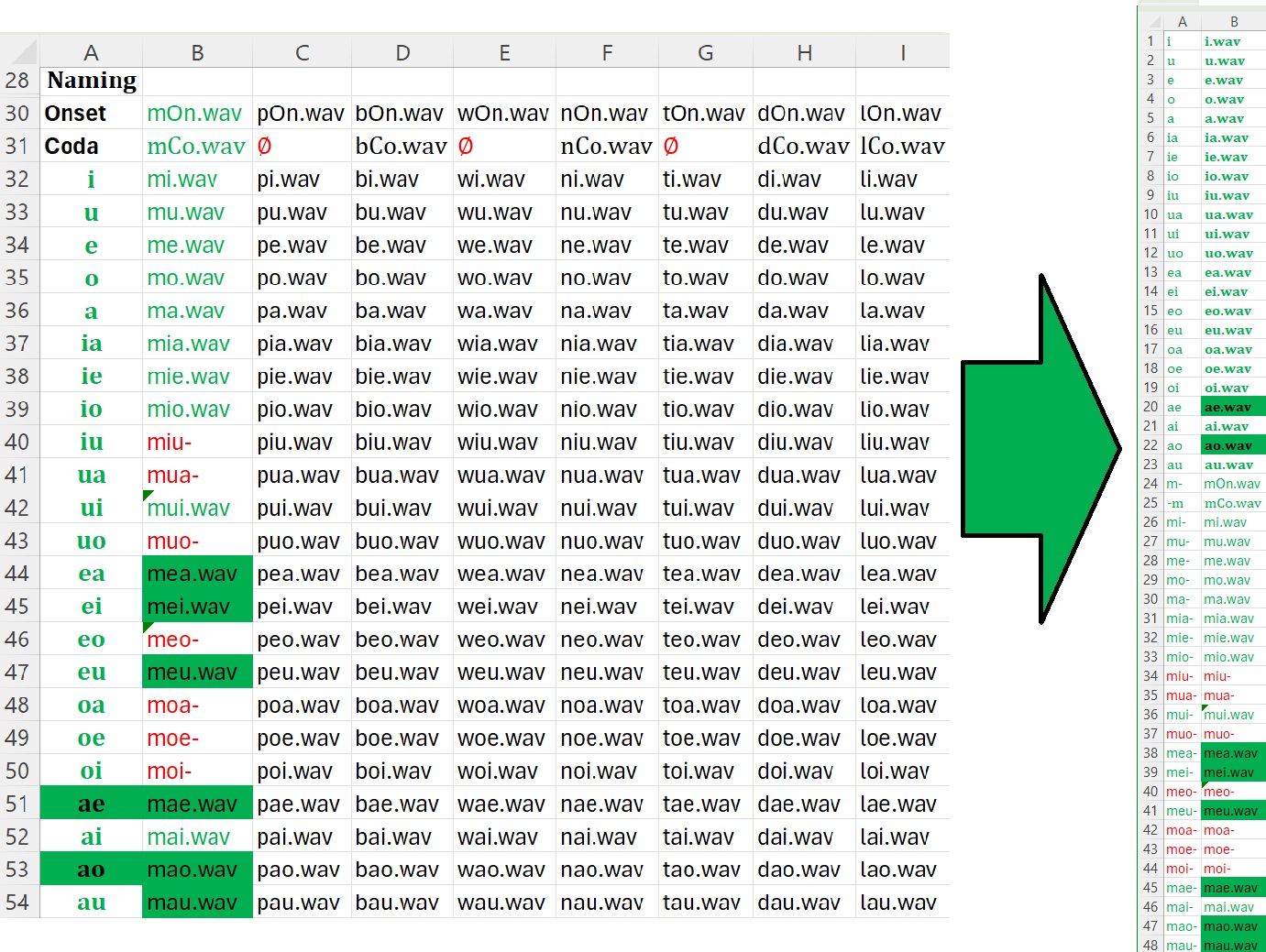

  • You’ll see a matrix of possible onsets, codas and syllable combinations.
  • You will be assigned a specific set of data.

3.1.1 Task 1 — Dictionary search

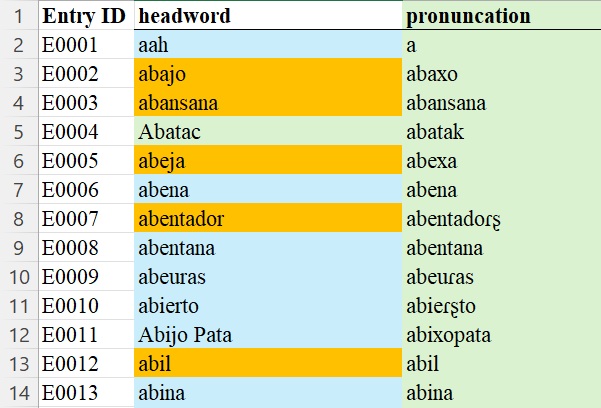

• Open the Media Lengua dictionary (Headwords and IPA transcriptions only).

• For each assigned onset/ coda / syllable:
  • Copy the dictionary into EditPad Lite or whatever RegEx equipped text editor you are using.

  • Search the dictionary to see if they appear in any word (ideally, you’d locate these in the IPA column).

  • Important notes:
    • Codas appear at the end of syllables or words. Word-internally, this may be difficult to identify.
      • In a word like acomodana /akomodana/ how do we know if the m is the coda of /ko-m/ or the onset of /m-o/? Answer: it depends on what follows. If it’s a vowel, it’s the onset, if it’s a consonant, it’s likely a coda. Therefore, in acomodana /akomodana/ [a.ko.mo̝.ˈda.na] it’s an onset, while in acompañana /akompaɲan/ [a.kom.ˈpa.ɲa], /p/ follows /m/ placing /p/ as the onset of /pa/ and /m/ as the coda of /kom/.

      • Also, pay special attention to vowel sequences. If you’re looking for /mi/, don’t extract the token from agradesimiento /a.ɡɾa.de.si.ˈmien.to/ as this is actually an /mie/ sequence. Instead, look for camisa /ka.ˈmi.sa/ where no vowel follows i.
      • This holds true for clusters; don’t extract g from gɾ.

      • Consider regEx like m[aieuo][^aieuo] for open syllables with only one vowel; m[aieuo][aieuo] for open syllables with two vowels, and m([^aieuo]|\\s|$) for codas.
    • If you can avoid extracting syllables with codas, do this. For example, if you have the choice between acomodana and acompañan for the mo sequence, choose the open syllable in acomodana.

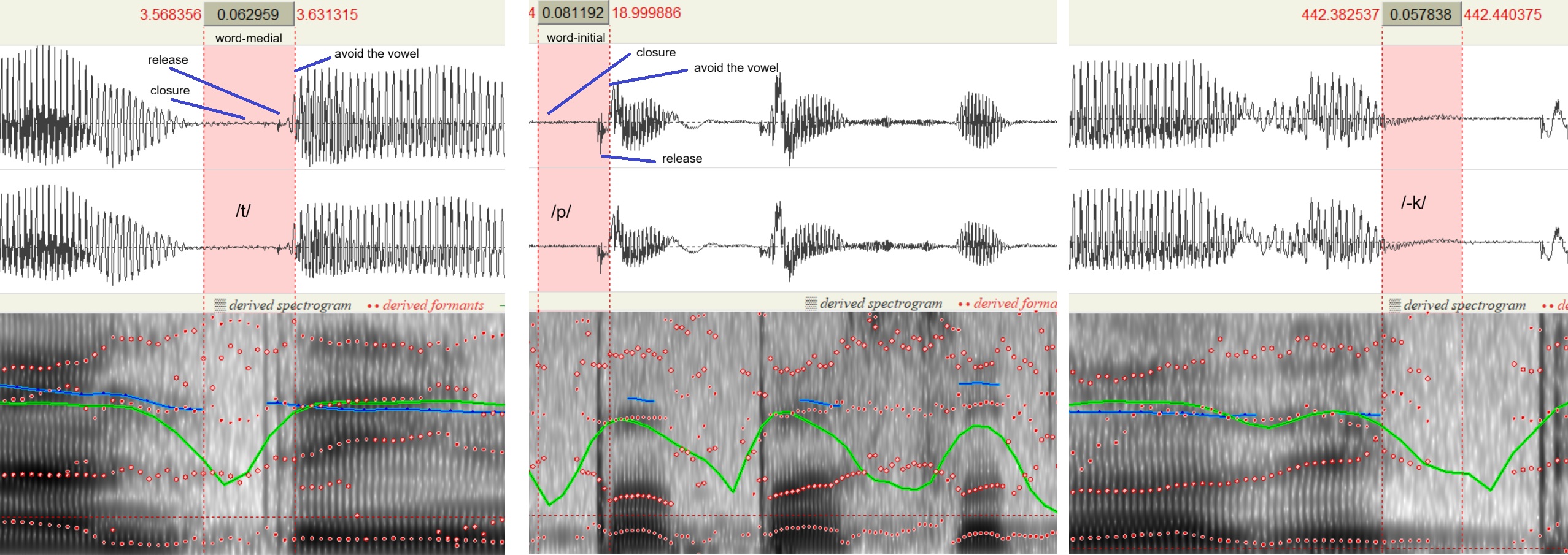

    • If you’re assigned a stop consonant, make sure to include a closure phase. If you can only find it in word initial position, include about 85 ms of silence (second image below. Coda stops are especially difficult as they’re often unreleased. For the sake of this tts engine, you can just add slience as is seen in the final image below.

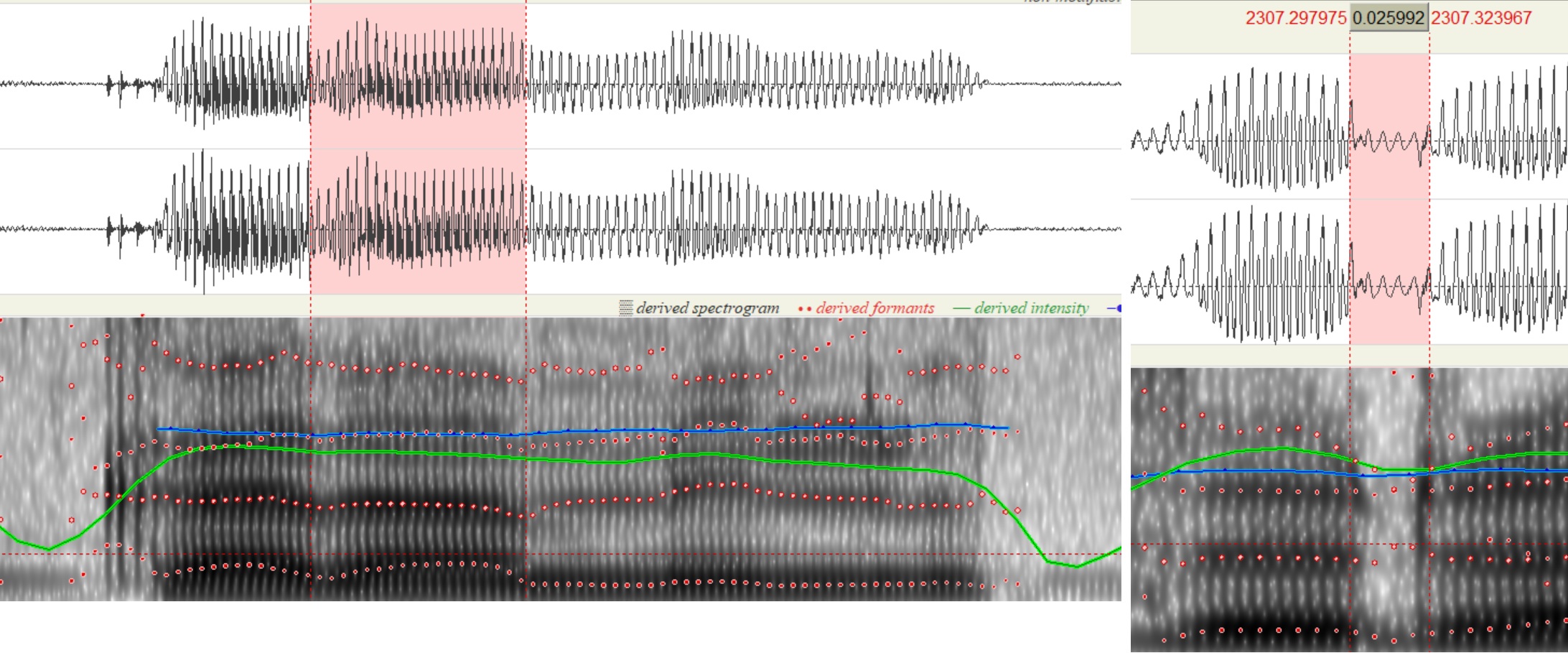

• For taps, you want about 10 to 25 ms of silence, followed by the vowel. For the coda tap, you simply want to find one example, and save the 10 to 25 ms of silence.

• If possible avoid syllables and vowels in penultimate position. We don’t want every token to be stressed! If we were going to continue to build an actual tts engine using this methodology, we’d modify every token to include correlates of stress (vowel duration, amplification, pitch), and the save those with _stress. These would be loaded when the segment is found in a stressed position.

• If the onset/segment exists: change the font to green.


• If it does not exist: change the font to red.

  • These steps ensure we don’t waste time hunting for unattested syllables.

• Open the recordings
  • You will receive three Praat textGrid files with corresponding audio. These will be uploaded on Canvas.

  • There should be three folders, each with a .wav file and a corresponding .textGrid file.

• As you can see in the image, the .wav files are huge. Make sure you have space to accommodate them on your hard drive. If not, consider purchasing a USB flash drive.

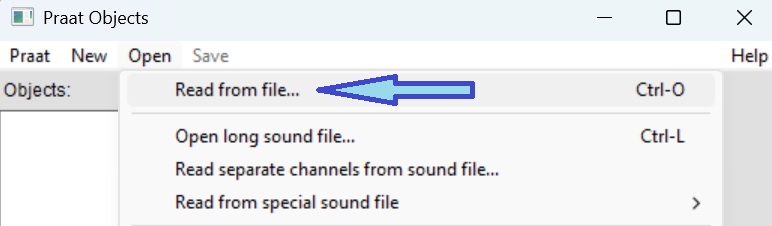

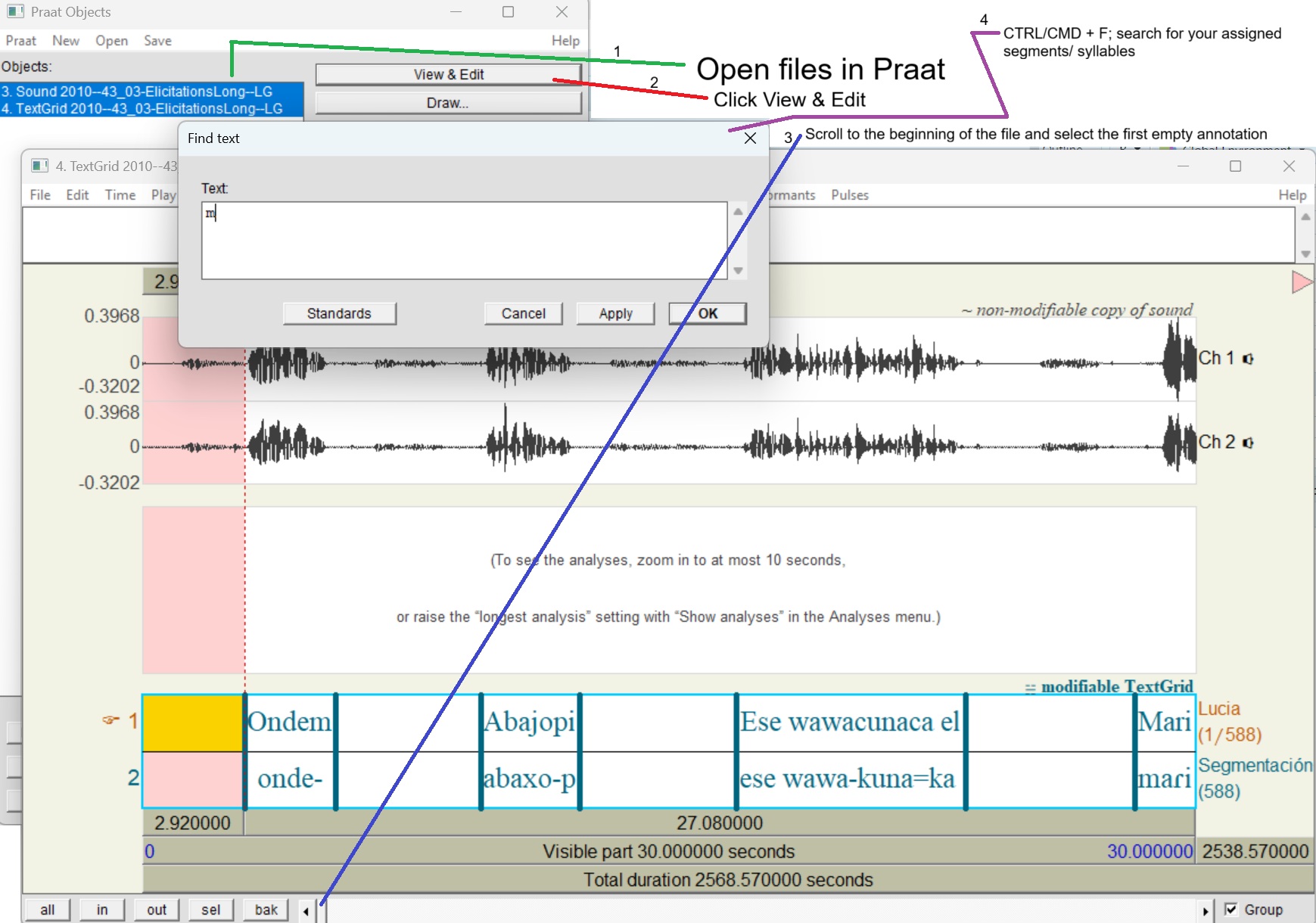

  • Open the .wav file and its corresponding .textGrid in Praat.

  • Select both files in the Objects Window and click View & Edit.

  • Scroll to the beginning of the file and select the first empty annotation. It will change to pink.
    • You’ll want to do this for each search as Praat does not do backwards searches.

  • Press ctrl+F (or cmd+F on Mac), to bring up the search window.

  • Search for your segment and syllable pairs.

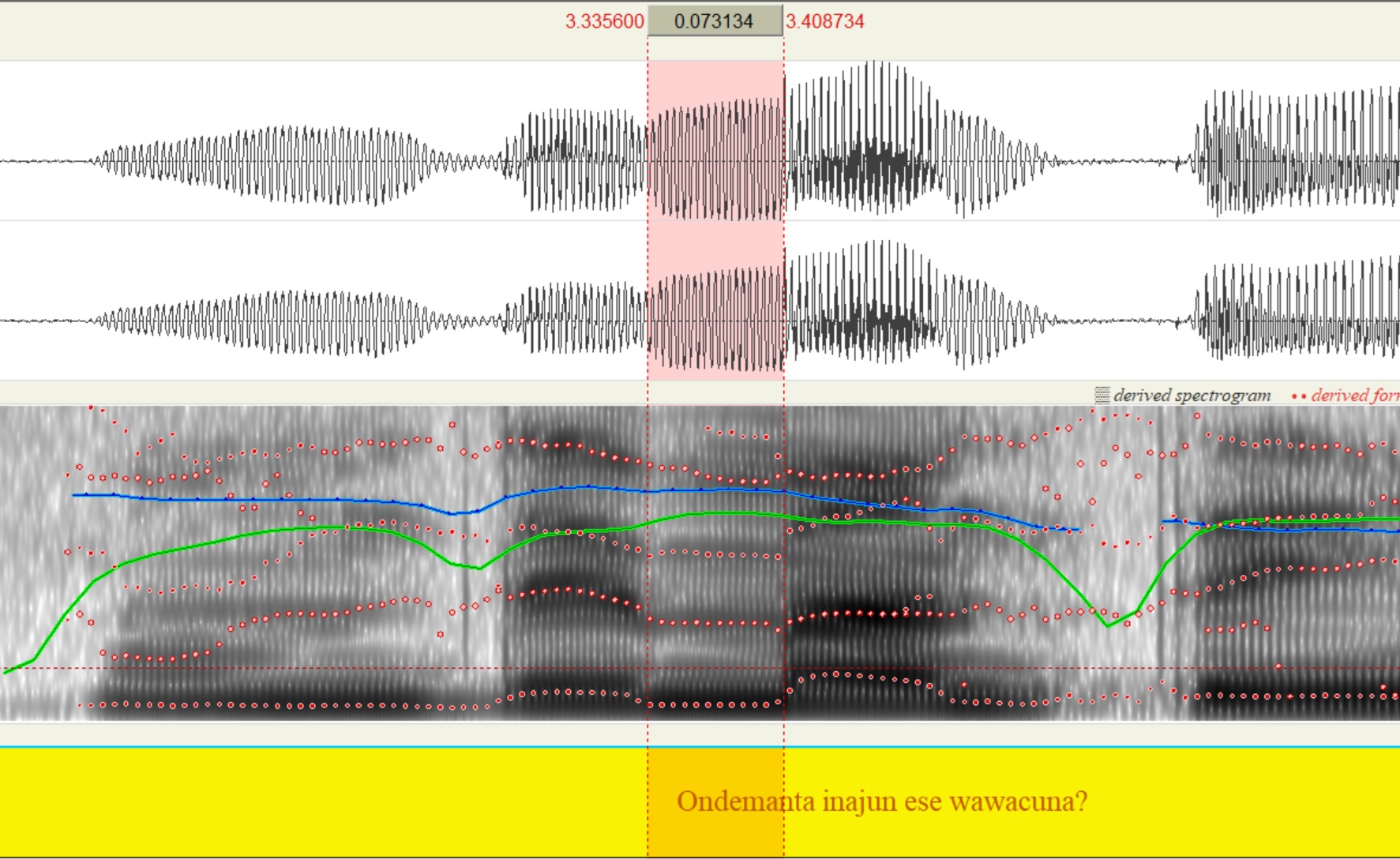

• Once you locate the token, carefully select it. Try your best to avoid any of the material from the neighbouring segments. This is impossible to do due to co-articulation effects, but we can try and minimize the amount of carry over.

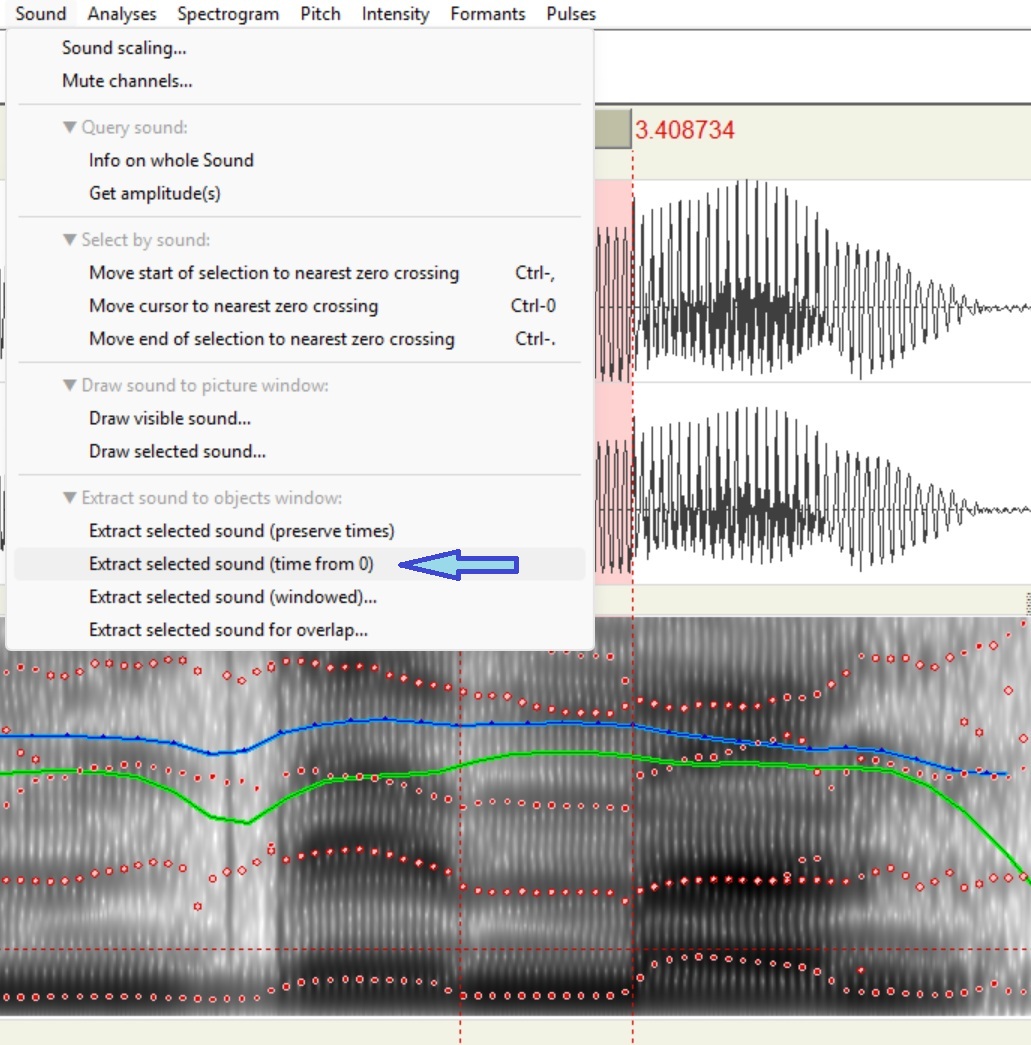

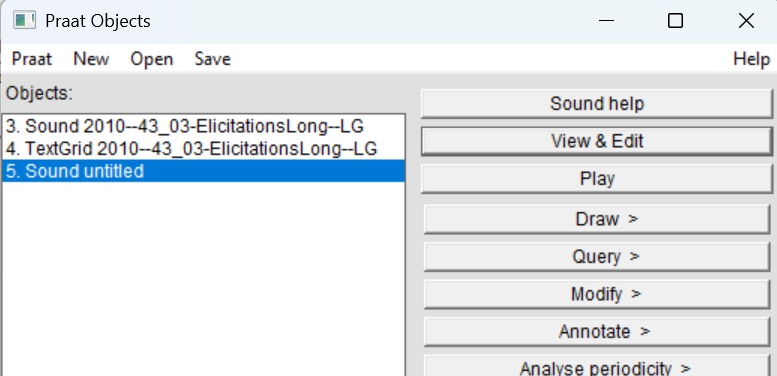

• Next we want to extract the token. To do so, click on Sound → Extract selected sound (time from 0). This will place token in the Praat Objects Window.

• At this point, we could modify the token for pitch, duration etc., but we’re just going to save it. To do so, select the file, click Save → Save as WAV file...

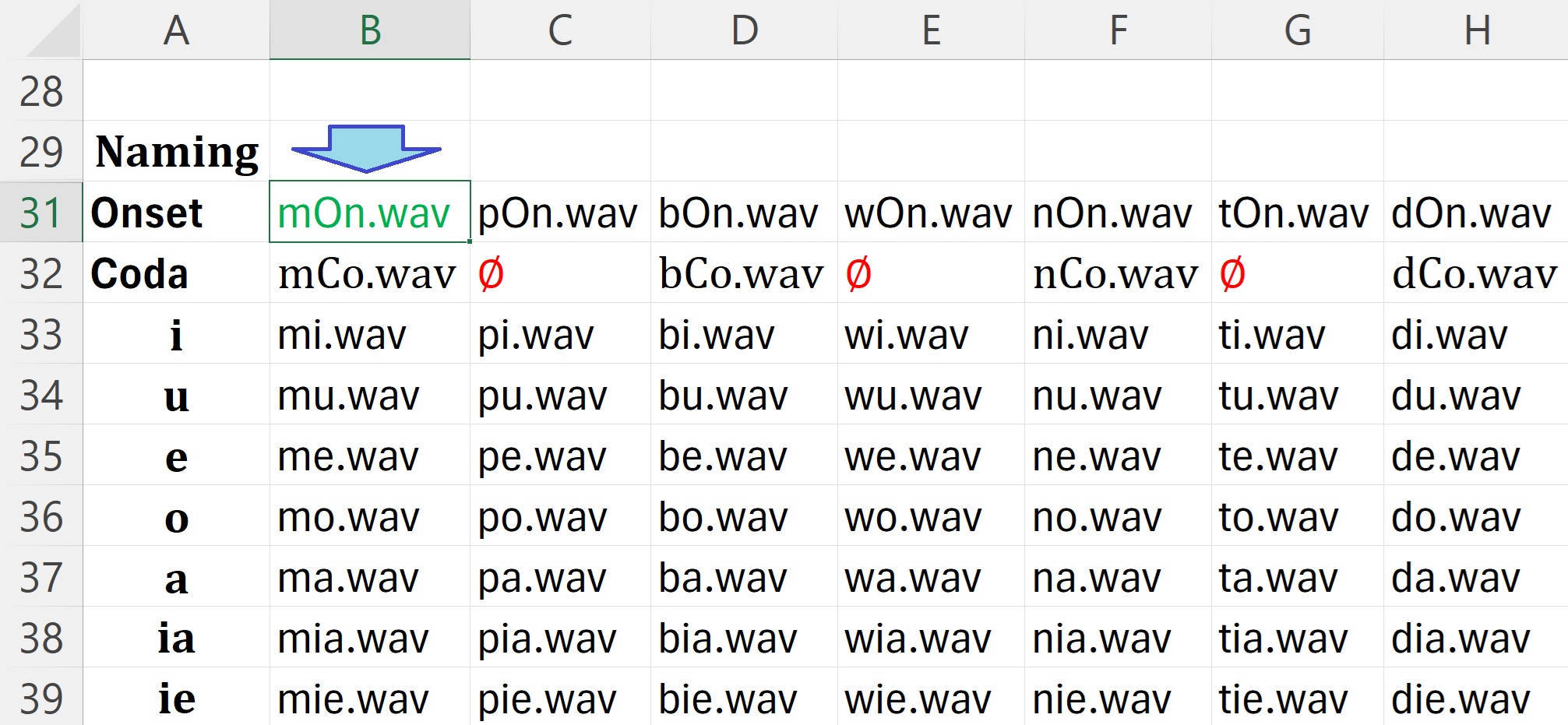

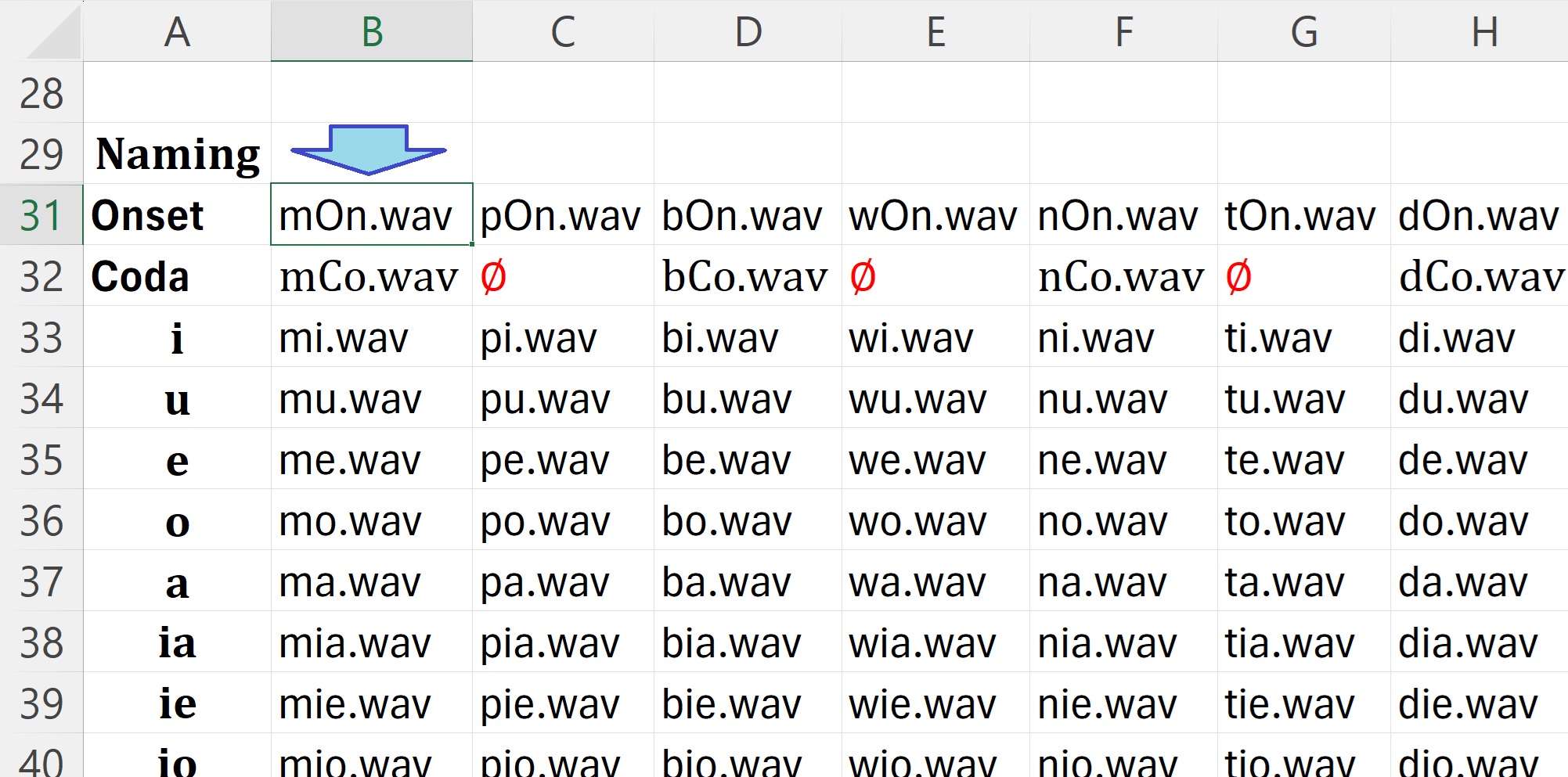

• Then use the naming convention in the second matrix (mOn.wav).

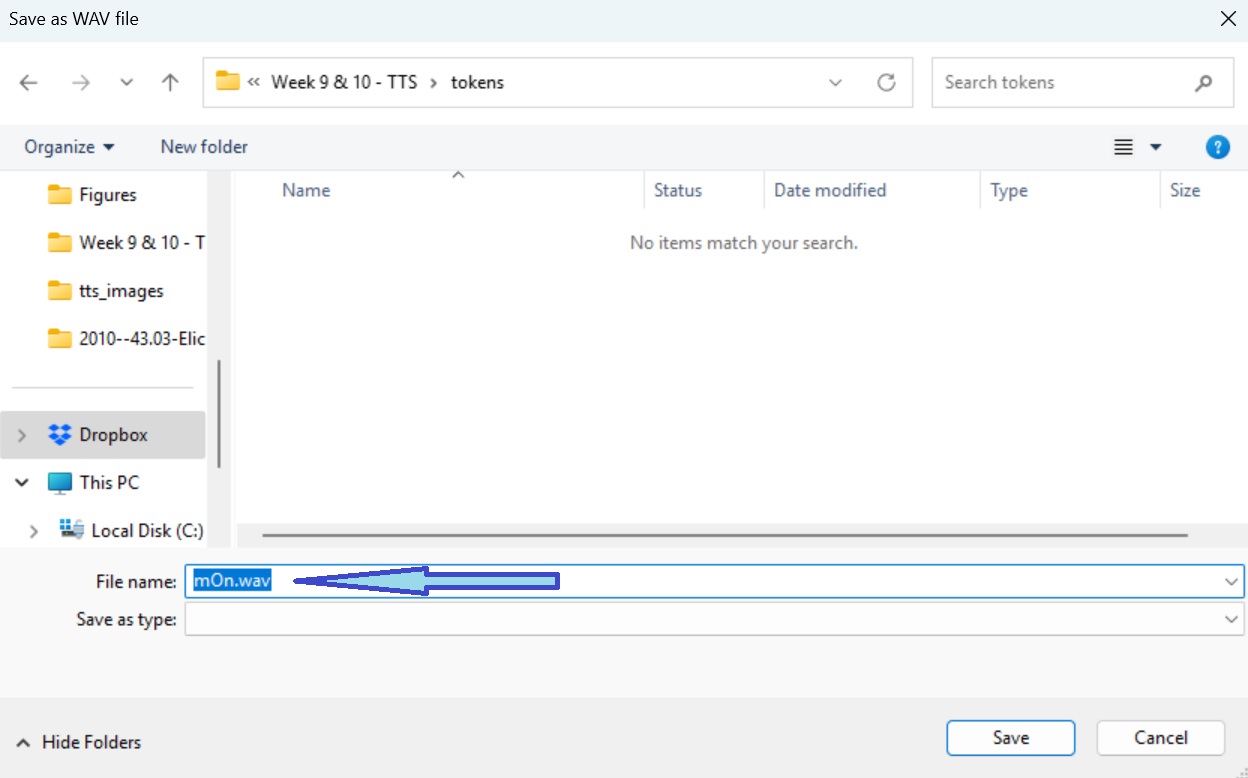

• And save the file.

• In the spreadsheet, change the color to green.
• If you couldn’t find the file in the data, change it to red. We might end up ‘creating’ this sound sequence if we have time.

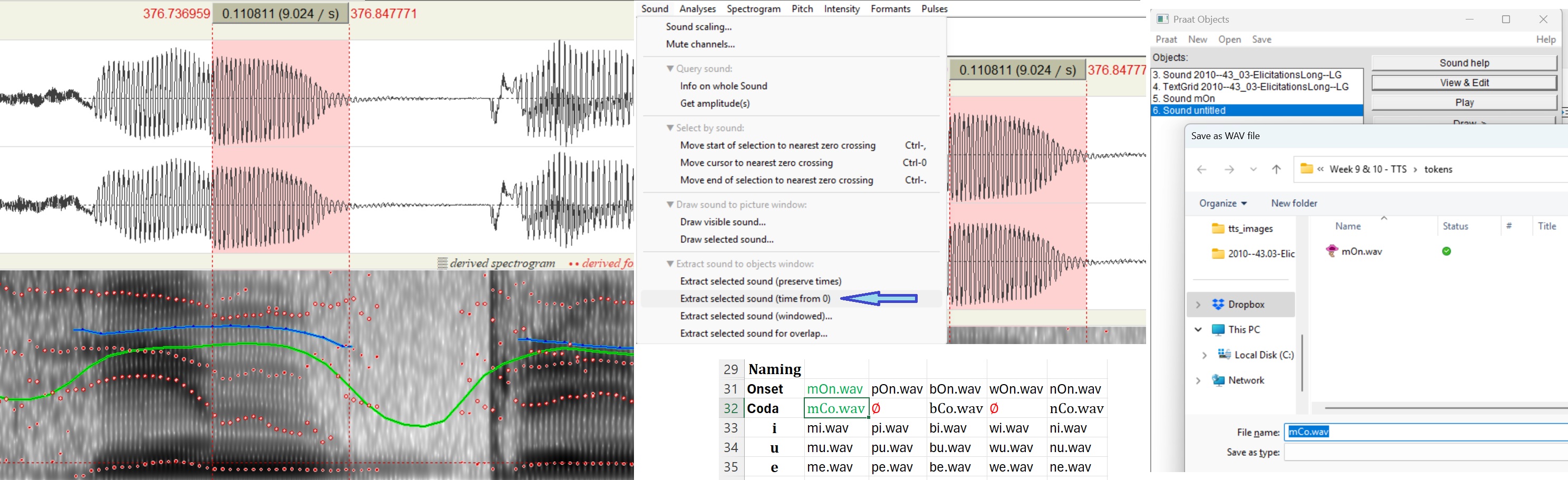

Now we’re going to repeat the process with coda -m.
- Return to the beginning of the sound file and search a word with coda -m or search for m until you find it in coda position.
- Here, I found coda -m in the word siempre. This is nice as it follows a stop consonant, so I can get the fade.
- We then select the target portion
- Sound → Extract selected sound (time from 0)
- Select file in the objects window, Save → Save as WAV file...
- Use the naming convention (mCo.wav) in the second matrix, then mark it with green.

Here’s one more example with a vowel.

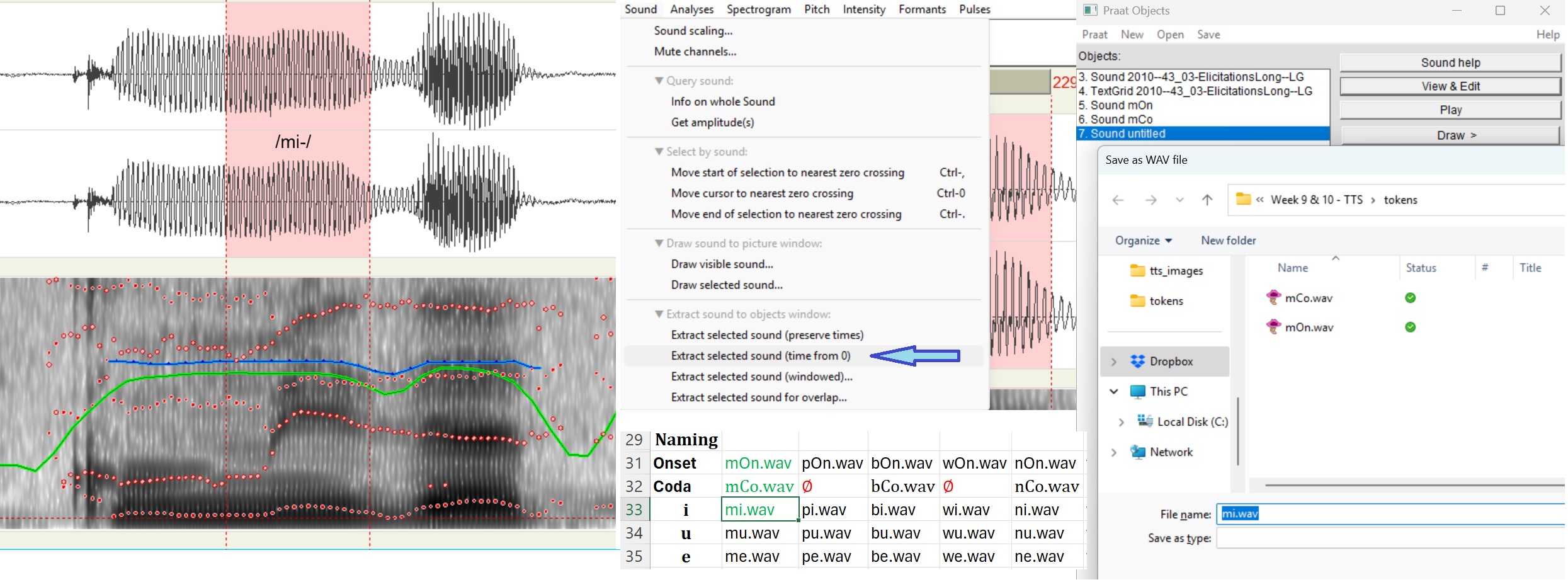

- Return to the beginning of the sound file and search a word containing mi or search for mi until you find an example. Verify that it’s an onset + vowel and ideally without a coda.
- Here, I found mi in the word comida. This is nice as it follows a stop consonant, so I can get the fade. It was also common at the end of words, but we don’t want too much fade either.
- We then select the target portion
- Sound → Extract selected sound (time from 0)
- Select file in the objects window, Save → Save as WAV file...
- Use the naming convention (mi.wav) in the second matrix, then mark it with green.

Now finish your assigned data.
A few additional things to note:

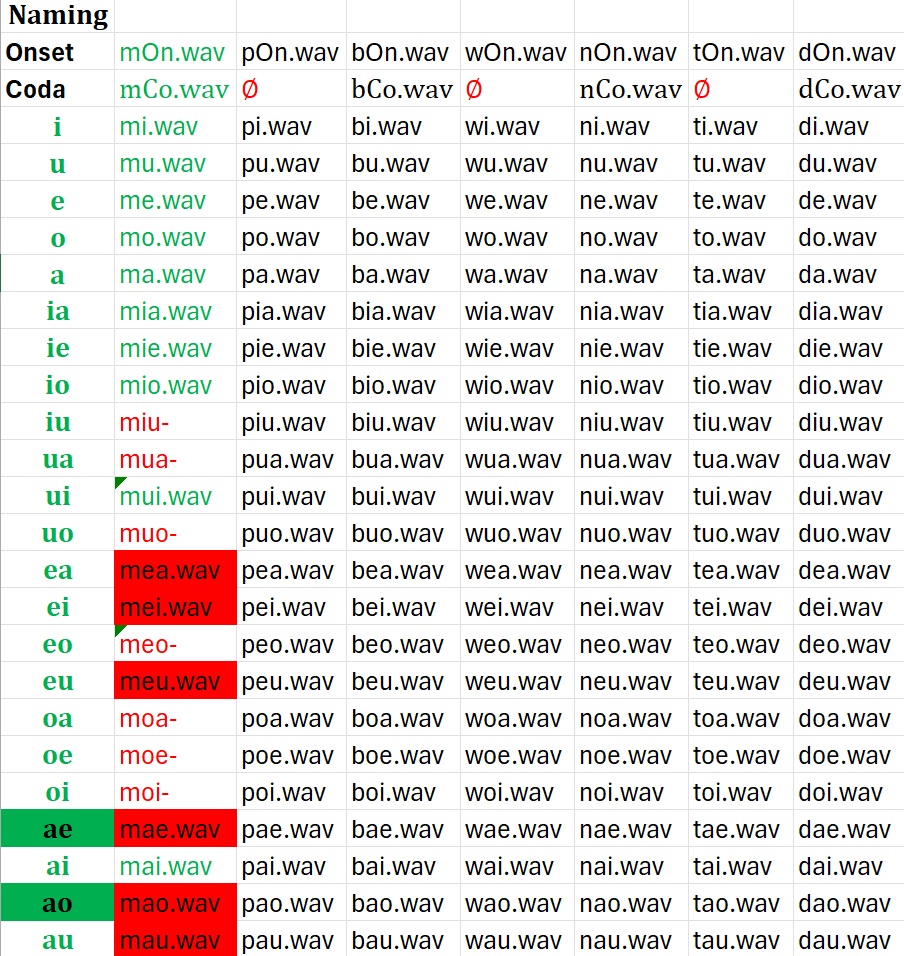

• I finished up m and there were a number of gaps:



• The tokens in red font weren’t identified in the dictionary, so we’ll pretend they’re just natural gaps in the language (in reality, there’s only 3000+ words in the dictionary, so it’s probably gaps in the dictionary, not necessarily the language (though syllable gaps are found in all languages)).

• Those highlighted in red appeared in the dictionary, but they weren’t in the small sample of sound files we have. Therefore, we know that they’re not natural gaps in the language. We’re going to manually create these sound files from the individual onset consonant segment and the individual missing vowel. We could attempt to unite vowels together e.g., mu with o, but I feel like the m to oe transition will appear more natural.

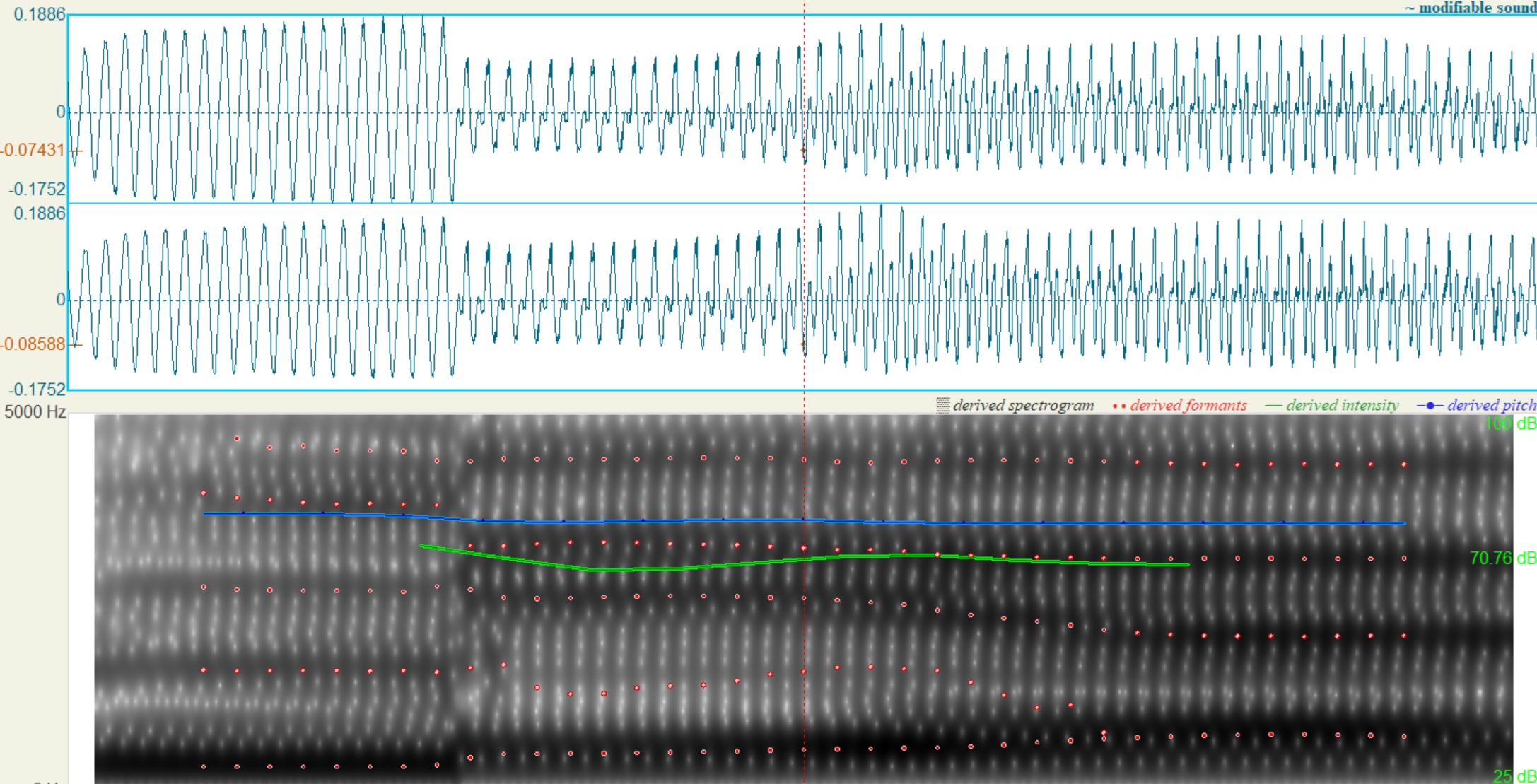

• To create the missing syllables, we’ll open the onset consonant, in this case, m, and the uo

• Next select both files and use the concatenate function under combine.

• The View & Edit the new file.

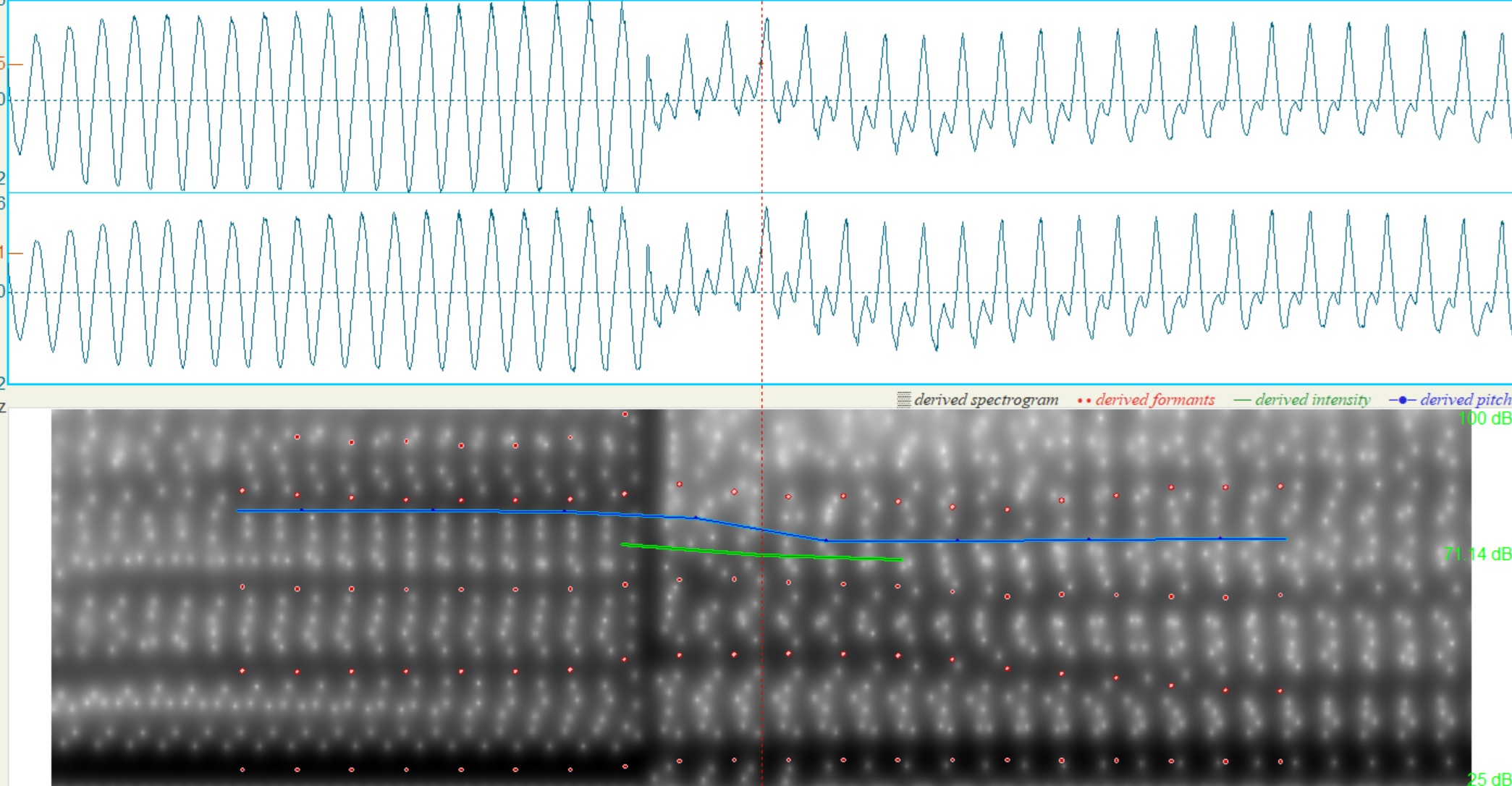

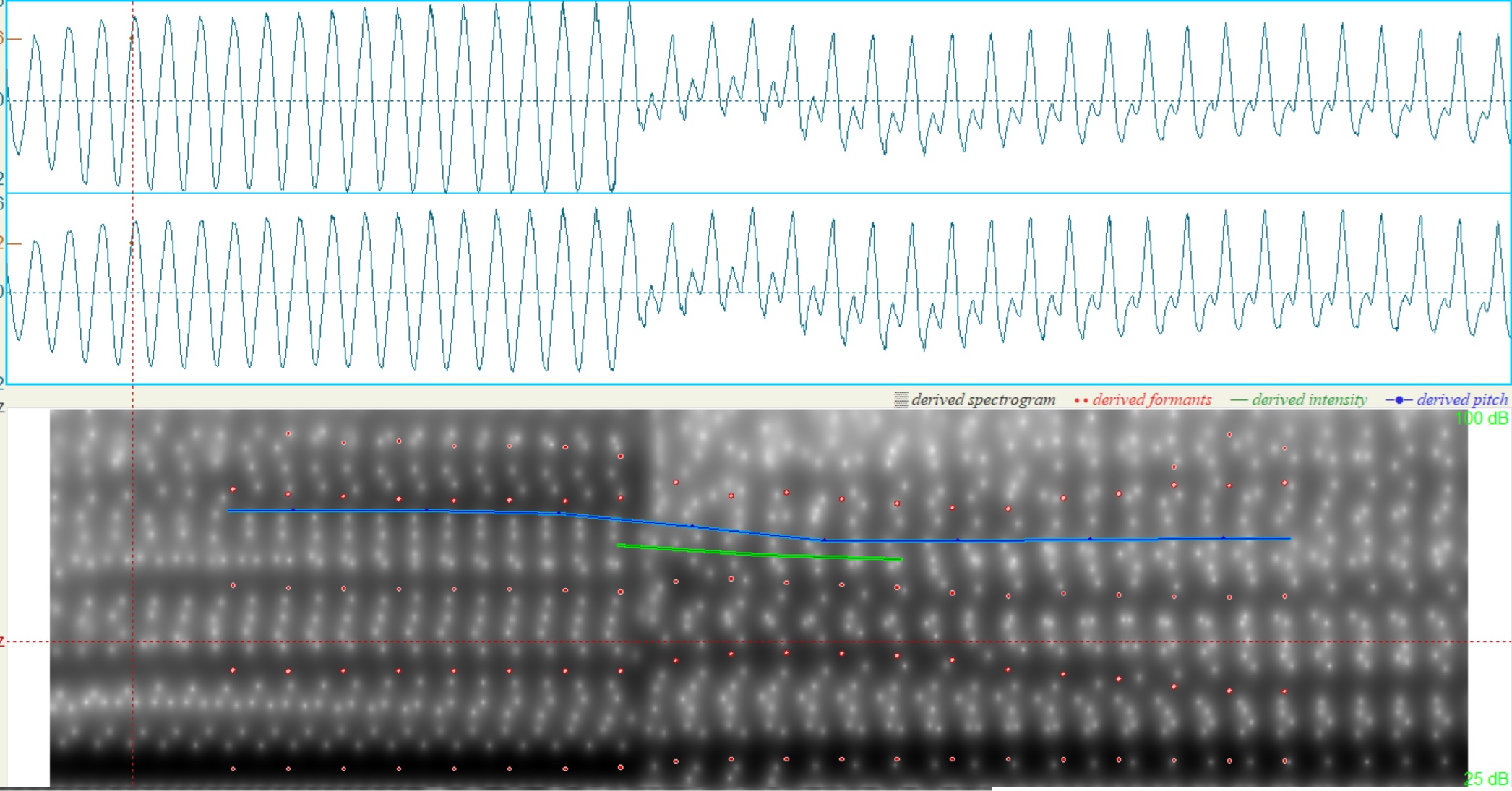

• Many times, there’s a noticeable striation where the files are connected, and I would try and edit this down by matching amplitudes of the wave form, but mea actually doesn’t look too bad, and it sounds relatively natural, so we’ll keep it as-is. The image below is from meu.




• To edit this down, we can zoom in on the striation, the select from the zero crossing of a “good” wave to the zero crossing elsewhere (typically on the far size of the “bad” wave). Then ctrl+x to cut out the bad part. This is more trial and error than anything else.




• If you compare the zoomed out portion on the right, you’ll notice that the striation has faded, quite a bit. You could continue to edit this until it’s gone, but you want to be careful not to chop out too much.

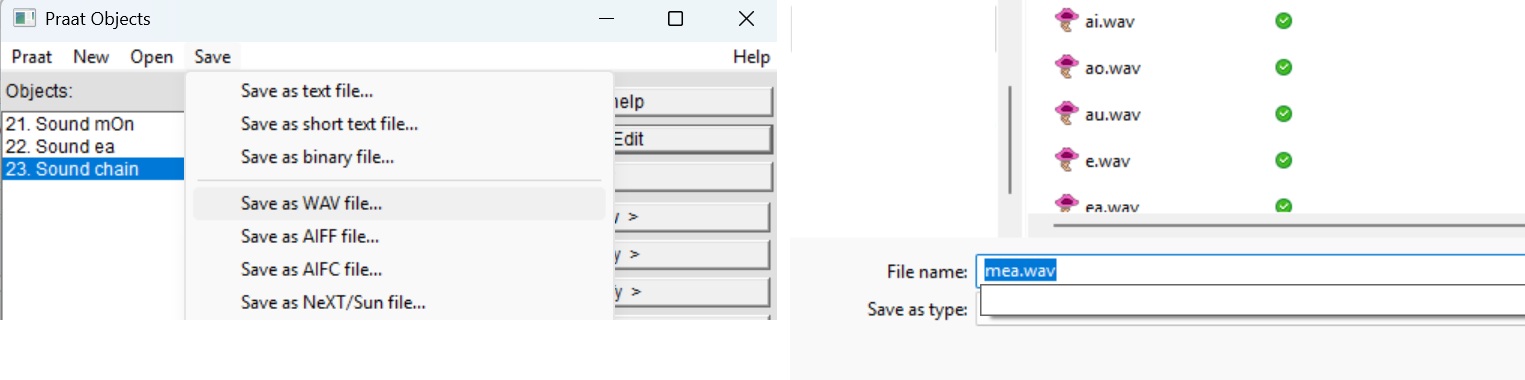

• Then we want to save the file.

• I then repeat the process with mei, meu, mea, mao, and mau. If I were feeling generous, I’d do miu, mua, muo, moa, moe, and moi as well, in case these aren’t actually gaps in the language.

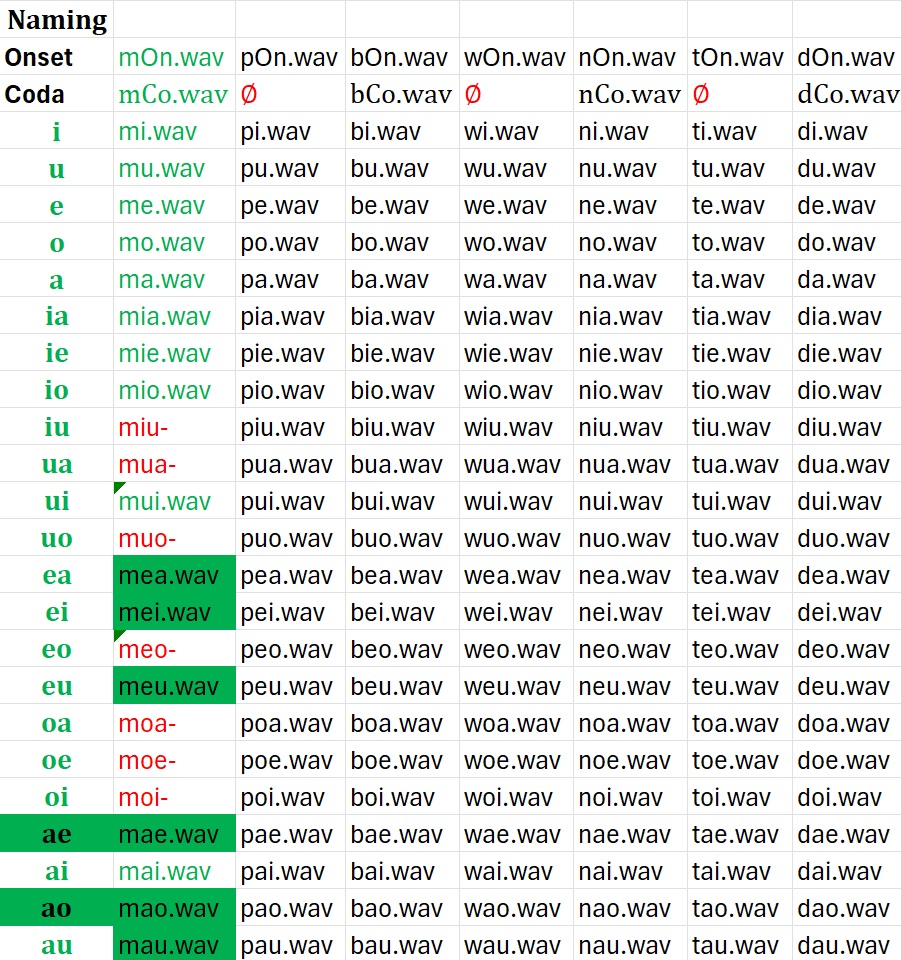

• After each creation, I’d like you to mark highlight these in green (not just change the text color). This way we know that they are created sound files not extracted from the actual data.

• As a side note, I already merged a+e and a+o as these were not found in the sound files.

• Also, it’s also worth noting that these created sound files are not great. A lot more work would be needed to make them sound more natural. One of the biggest issues is amplification where the nucleus is quieter than the onset. There’s also issues with co-articulation transitions in the formants. Additionally, there’s issues with the pitch transitions and durations. These are are ‘fixable’, but we’re not looking for quality in this system; simply functionality.



4 HOMEWORK

• Complete your assigned token cuts.

• Send them to me in a zip file.



5 Text to IPA

We are going to place our text into an object. Our test sentence will be:
Vospa oracionta aquipica escribipangui., which translates to “Write your sentence here.”

ML=c("Vospa oracionta aquipica escribipangui.")

Placing our text phrase in an object called ML in orthography as a string using c().

We’re then going to convert the string to a data frame

#Converting to data frame
tts=as.data.frame(ML)

Then we’ll name first column to skirt UTF-8 Header error (this really only an issue if you load the data from an external source, which we’re not doing here).

colnames(tts)[1]="Word"

Now, we’ll transfer our text to another column for conversion to IPA. This way, we can still compare the text with the IPA.

tts$IPA=tts$Word

The following is a long string of regEx that converts the text to IPA. Follow the comments therein for details.

• The order is important here. For example if I change <r> to a tap (ɾ), when I go to convert <rr> to the voiced retroflex fricative (ʐ), double r’s (<rr>) will have already been converted to ɾɾ. We could convert rr to ʐ first, but word-initial <r>’s in Media Lengua also appear as the retroflex fricative ʐ. My fix for this is to convert initial <r> and double rr to a place holder (@): r to @ (note the space), then (^r|rr) to @. Then I convert all other <r> to a tap (ɾ) and the convert all @ to ʐ (note the space), and the remaining @ to ʐ.

#Punctuation removal + whitespace tidying
tts$IPA <- gsub("\\p{P}+", "", tts$IPA, perl = TRUE)   # removes .,;:!?… incl. ¿ ¡
tts$IPA <- gsub("\\s+", " ", trimws(tts$IPA))          # collapse/trim spaces

#IPA conversion using regular expressions

#Converts upper case to lower case.
tts$IPA=gsub("([[:upper:]])", perl = TRUE, "\\L\\1", tts$IPA)

# Here's a list of known exceptions e.g., "Jesse" doesn't follow ML's phonotactic structure or phonological rules.
tts$IPA=gsub("manda", "manta",tts$IPA)
tts$IPA=gsub("(Jesse|jesse)", "ʒesi",tts$IPA)
tts$IPA=gsub("(todo forma, de|de todo forma)", "detodofoɾma",tts$IPA)
tts$IPA=gsub("(antes de|Antes de)", "antesde",tts$IPA)
tts$IPA=gsub("(ante ayer|Ante ayer)", "anteayer",tts$IPA)
tts$IPA=gsub("asellata", "asiʒata",tts$IPA)
tts$IPA=gsub("(gendi|gende)", "genti",tts$IPA)

#text conversion to IPA begins here
#Include the following if you're working with Imbabura Kichwa (ML does not follow these rules).
#tts$IPA=gsub("nk", "ng",tts$IPA) #Kichwa only
#tts$IPA=gsub("nt", "nd",tts$IPA) #Kichwa only
#tts$IPA=gsub("np", "nb",tts$IPA) #Kichwa only

tts$IPA=gsub("ñ", "ɲ",tts$IPA)
tts$IPA=gsub("ngue", "ngi",tts$IPA)
tts$IPA=gsub("hua", "wa",tts$IPA)
tts$IPA=gsub("ng", "ŋg",tts$IPA)
tts$IPA=gsub("nk", "ŋk",tts$IPA)
tts$IPA=gsub("ch", "ʧ",tts$IPA)
tts$IPA=gsub("sh", "ʃ",tts$IPA)
tts$IPA=gsub("ll", "ʒ",tts$IPA)
tts$IPA=gsub("(rr|^r)", "@",tts$IPA)
tts$IPA=gsub("( r)", " @",tts$IPA)
tts$IPA=gsub("r", "ɾ",tts$IPA)
tts$IPA=gsub("ɾt", "ɾʃt",tts$IPA)
tts$IPA=gsub("(ɾ )", "ɾʂ ",tts$IPA)
tts$IPA=gsub("(ɾ$)", "ɾʂ",tts$IPA)
tts$IPA=gsub(" @", " ʐ",tts$IPA)
tts$IPA=gsub("@", "ʐ",tts$IPA)
tts$IPA=gsub("cona", "kuna",tts$IPA)
tts$IPA=gsub("ce", "se",tts$IPA)
tts$IPA=gsub("ci", "si",tts$IPA)
tts$IPA=gsub("ca", "ka",tts$IPA)
tts$IPA=gsub("co", "ko",tts$IPA)
tts$IPA=gsub("cc", "ks",tts$IPA)
tts$IPA=gsub("cu", "ku",tts$IPA)
tts$IPA=gsub("cpi", "kpi",tts$IPA)
tts$IPA=gsub("c$", "k",tts$IPA)
tts$IPA=gsub("cʒ", "kʒ",tts$IPA)
tts$IPA=gsub("cl", "kl",tts$IPA)
tts$IPA=gsub("ct", "kt",tts$IPA)
tts$IPA=gsub("cʧ", "kʧ",tts$IPA)
tts$IPA=gsub("cʧ", "kʧ",tts$IPA)
tts$IPA=gsub("cs", "ks",tts$IPA)
tts$IPA=gsub("cr", "kɾ",tts$IPA)
tts$IPA=gsub("cɾ", "kɾ",tts$IPA)
tts$IPA=gsub("qu", "k",tts$IPA)
tts$IPA=gsub("x", "ks",tts$IPA)
tts$IPA=gsub("hu", "xu",tts$IPA)
tts$IPA=gsub("gui", "gi",tts$IPA)
tts$IPA=gsub("j", "x",tts$IPA)
tts$IPA=gsub("-y-", " i ",tts$IPA)
tts$IPA=gsub(" y ", " i ",tts$IPA)
tts$IPA=gsub("y ", "i ",tts$IPA)
tts$IPA=gsub("y$", "i",tts$IPA)
tts$IPA=gsub("my", "mi",tts$IPA)
tts$IPA=gsub("me ", "mi ",tts$IPA)
tts$IPA=gsub("chon ", "ʧun ",tts$IPA)

#There are some people who write <sh> as <s>. This can be fixed with the follow regEx, but it causes errors in words like "vospa" (2-POSS), which is actually /spa/, not /ʃpa/, so we'll ignore issue for now and count /ʃ/ written as <s> for now as a typo.
#tts$IPA=gsub("spaca", "ʃpaka",tts$IPA)
#tts$IPA=gsub("spa$", "ʃpa",tts$IPA)
#tts$IPA=gsub("spa ", "ʃpa ",tts$IPA)
#tts$IPA=gsub("spata", "ʃpata",tts$IPA)
#tts$IPA=gsub("spami", "ʃpami",tts$IPA)
#tts$IPA=gsub("spame", "ʃpami",tts$IPA)

#Back to the conversion script
tts$IPA=gsub("ny", "ni",tts$IPA)
tts$IPA=gsub("mary", "maɾi",tts$IPA)
tts$IPA=gsub("chy", "ʧi",tts$IPA)
tts$IPA=gsub("py", "pi",tts$IPA)
tts$IPA=gsub("y", "j",tts$IPA)
tts$IPA=gsub("nguy", "ngi",tts$IPA)
tts$IPA=gsub("gry", "gɾi",tts$IPA)
tts$IPA=gsub("shy", "ʃi",tts$IPA)
tts$IPA=gsub("chary", "ʧaɾi",tts$IPA)
tts$IPA=gsub("siky", "siki",tts$IPA)
tts$IPA=gsub("niky", "niki",tts$IPA)
tts$IPA=gsub("kuty", "kuti",tts$IPA)
tts$IPA=gsub("^v", "b",tts$IPA)
tts$IPA=gsub(" v", " b",tts$IPA)
tts$IPA=gsub("v", "β",tts$IPA)
tts$IPA=gsub("^z", "s",tts$IPA)
tts$IPA=gsub(" z", " s",tts$IPA)
tts$IPA=gsub("ts", "z",tts$IPA)
tts$IPA=gsub("tz", "z",tts$IPA)
tts$IPA=gsub("aj", "ai",tts$IPA)
tts$IPA=gsub("aw", "au",tts$IPA)
tts$IPA=gsub("aia", "aja",tts$IPA)
tts$IPA=gsub("ajai", "aiai",tts$IPA)
tts$IPA=gsub("aua", "awa",tts$IPA)
tts$IPA=gsub("auo", "awo",tts$IPA)
tts$IPA=gsub("aue", "awe",tts$IPA)
tts$IPA=gsub("aiu", "aju",tts$IPA)
tts$IPA=gsub("aui", "awi",tts$IPA)
tts$IPA=gsub("aie", "aje",tts$IPA)
tts$IPA=gsub("gua", "wa",tts$IPA)
tts$IPA=gsub("gue", "ge",tts$IPA)
tts$IPA=gsub("gui", "gi",tts$IPA)
tts$IPA=gsub("í", "i",tts$IPA)
tts$IPA=gsub("é", "e",tts$IPA)
tts$IPA=gsub("á", "a",tts$IPA)
tts$IPA=gsub("ó", "o",tts$IPA)
tts$IPA=gsub("ú", "u",tts$IPA)
#tts$IPA=gsub("o", "u",tts$IPA) #Kichwa only
#tts$IPA=gsub("e", "i",tts$IPA) #Kichwa only
tts$IPA=gsub("g", "ɡ",tts$IPA)
tts$IPA=gsub("f", "ɸ",tts$IPA)
tts$IPA=gsub("h", "",tts$IPA)

After converting the text to broad IPA, we’re going to convert the transcription to syllables so we can later identify the associated wave file with each segment/ syllable. To begin, we pass the IPA transcription to a new column called Syllable.

6 IPA to Syllables

tts$Syllable=tts$IPA

Now the syllabification process begins.
Here, we convert spaces to ‘%’, vowels to ‘V’, onset clusters to $$ and single consonants to ‘C’, and onset-coda clusters to CC (this happens automatically in the 3rd step).

tts$Syllable=gsub(" ", "%",tts$Syllable)
tts$Syllable=gsub("(pl|pɾ|bl|bɾ|tɾ|dɾ|kl|kɾ|ɡl|ɡɾ|ɸl|ɸɾ|ʃn)", "$$",tts$Syllable)
tts$Syllable=gsub("[^aeoiu%$]", "C",tts$Syllable)
tts$Syllable=gsub("[aeoiu]", "V",tts$Syllable)

This is a three step process.

• It begins by converting spaces () to a place holder (I’m using %)

• Next we convert all non vowels ([^aeoiu]) and % to C.

• Then we convert all vowels ([^aeoiu]) to V.

• s is a special case. I’ll discuss it below.

Now we have to understand Media Lengua’s syllable structure.
Media Lengua is a (C)(C)V(V)(C)(C) language.

• It contains an obligatory nucleus:
  • y [ˈi] /i/ ‘and’

  • ese [ˈe̝̝.se̝] /e.se/ ‘this’
• Vowel sequencies are also permitted (we will treat diphthongs & hiatus as the some for the purpose of this module, though there are phonetic and phonological differences):
  • ahi [ˈa.i] /a.i/
  • oi-na [o̝.ˈi.na] /o.i.na/ ‘hear’

• Onsets and codas are both permitted:
  • Onsets
    • cada [ˈka.da] /ka.da/ ‘each’

  • Codas
    • antes [ˈan.te̝s] /an.tes/ ‘before’

• Both onsets and codas are permitted:
  • bencena [ben.ˈse.na] /ben.se.na/ ‘give up, resign, defeat’.

• Both onset and coda clusters are also permitted:
  • Onset cluster
    • flaco [ˈɸla.ko̝] /ɸla.ko/ ’skinny;

  • Coda cluster
    • sexto [’seks.to̝] /seks.to/ ‘sixth’

  • Onset and Coda cluster
    • flor [ˈɸl.o̝ɾʂ] /ˈɸl.oɾ/ ‘flower’

• Sequences of 4 consonants can appear with coda + onset clusters
  • extranjero [e̝ks.tɾan.ˈxe̝.ɾo̝] /eks.tɾan.ˈxe.ɾo/ ‘foreigner’

Special cases:

In VCC sequencies, the vowel stands alone (V.CC)

• letra [ˈle.tɾa] /le.tɾa/ ‘letter’ (CV.CCV)


  One exception to this is s. In these cases, s functions as the coda.

• In escuela s appears in coda position and k as onset.
  • escuela [e̝s.ˈkwe̝.la] /es.kue.la/ ‘school’.

Understanding this, we can now insert syllable breaks into the syllable sequences.

#1
tts$Syllable=gsub("VCC", "VC.C",tts$Syllable)
#2
tts$Syllable=gsub("VC", "V.C",tts$Syllable)
#3
tts$Syllable=gsub("V\\.C\\.C", "VC.C",tts$Syllable)
#4
tts$Syllable=gsub("\\$\\$", ".CC",tts$Syllable)
#5
tts$Syllable=gsub("C\\.C\\.CC", "CC.CC",tts$Syllable)
#6
tts$Syllable=gsub("V\\.C\\.CC", "VC.CC",tts$Syllable)
#7
tts$Syllable=gsub("C\\.C%", "CC%",tts$Syllable)
#8
tts$Syllable=gsub("C\\.C$", "CC",tts$Syllable)

1. Any vowel followed by two consonants is forced into VC.C.


• Example: VCCV → VC.CV.
• Rationale: Onset clusters have already been converted to $$. Media Lengua generally doesn’t allow two arbitrary consonants (non clusters) at the onset; so break them up into a coda + onset.
• Note: sk clusters break the sonority hierarchy “rule” on a micro-scale as fricatives are more sonorous than stops. Recall that more sonorous segments should be closer to the vowel nucleus and less sonorous segments should be further away. Therefore, we get /es.kwe.la/ rather than */e.skwe.la/. Also note that /ks/ functions more like an affricate, allowing it to form a coda.

2. By default, break before any consonant that follows a vowel.


• Example: VCV → V.CV

• This is a “maximal onset” approximation: start new syllables at consonants.

3. If the previous rule produced a V.C.C (two dots splitting a coda cluster), collapse it back to VC.C.


• Example: V.C.CV → VC.CV.

• Prevents over-splitting.

4. Handle special clusters we marked with $$ (like pl, pɾ, bl, bɾ, tɾ, dɾ, kl, kɾ, gl, gɾ, ɸl, ɸɾ, ʃn).


• Replace $$ with .CC. We can now mark them as valid two-consonant onsets since we’ve taken care of onset-coda cluster sequencies

5. If a sequence C.C.CC is created, collapse it to CC.CC.


• Example: VC.C.CCV → VCC.CCV as in extrangero /eks.tɾaŋ.ɡe.ɾo/ ‘foreigner’

• This is about handling four-consonant spans cleanly.

6. Similar fix as in 8, but for the three-consonant spans.


• Ensures something like V.C.CCV becomes VC.CCV as in **escribina* /es.kɾi.bi.na/ ‘write’

7. Word-final clusters: C.C% → CC%


• Don’t split consonant clusters at the end of a word.

• Example flor [ˈɸl.oɾʂ/ ‘flower’ instead of [ˈɸl.oɾ.ʂ/

8. Utterance-final version of line 10.


• So if the word ends the string, a final C.C is collapsed to CC.

I tested the syllable structure with the following words:
Vospa oracionta aquipica escribipangui Tuyu mamaca nalichu ese cotsata pero este extranjeroca si todo bienmi atsirca. extrangero etrangero escuela pensamiento centimetro coznana, flor, ans


This resulted in the following structure:
CVC.CV%V.CV.CVVC.CV%V.CV.CV.CV%VC.CCV.CV.CVC.CV%CV.CV%CV.CV.CV%CV.CV.CV%V.CV%CV.CV.CV%CV.CV%VC.CV%VCC.CCVC.CV.CV.CV%CV%CV.CV%CVVC.CV%V.CVC.CV%VCC.CCVC.CV.CV%V.CCVC.CV.CV%VC.CVV.CV%CVC.CV.CVVC.CV%CVC.CV.CV.CCV%CVC.CV.CV%.CCVCC%VCC

We now have to clean this up.

tts$Syllable=gsub("%\\.", "",tts$Syllable)
tts$Syllable=gsub("^\\.", "",tts$Syllable)
tts$Syllable=gsub("\\.$", "",tts$Syllable)
tts$Syllable=gsub("%", " ",tts$Syllable)

• We want to get rid of any syllable breaks caused by initial clusters (.CC) (this appears in flor in this data). The first line does this when a word with an initial cluster appears after a space, and the second line does the same in utterance-initial position.

• We want to remove any syllable breaks at the end of words. (C.%) (none appeared in the test data)

• We want to revert % back to space ().

  CVC.CV V.CV.CVVC.CV V.CV.CV.CV VC.CCV.CV.CVC.CV CV.CV CV.CV.CV CV.CV.CV V.CV CV.CV.CV CV.CV VC.CV VCC.CCVC.CV.CV.CV CV CV.CV CVVC.CV V.CVC.CV VCC.CCVC.CV.CV V.CCVC.CV.CV VC.CVV.CV CVC.CV.CVVC.CV CVC.CV.CV.CCV CVC.CV.CV CCVCC VCC
  At this point, we want to insert our new syllable breaks back in the transcription.
  To do so, we’re going to create a new column called breaks.


tts$breaks=tts$IPA

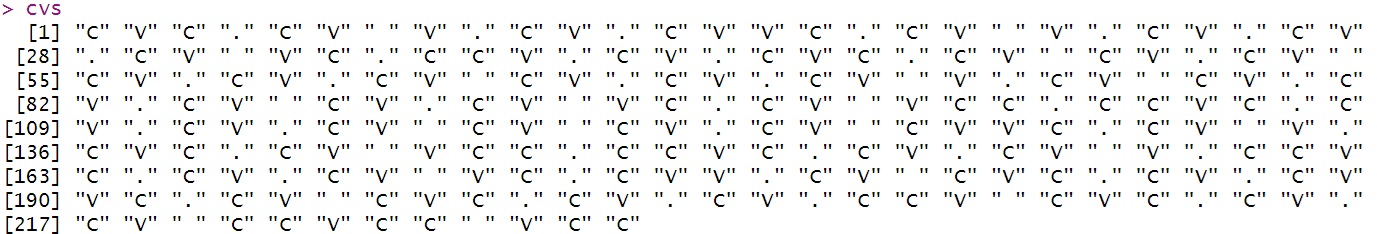

We’re now going to use the strsplit function, which is an r-basic function. It basically means “split the string at every character”.

cvs = strsplit(tts$Syllable, "")[[1]]

We then count the number of syllable breaks (periods) in the cvs object. We’ll use this in our for loop.

num_dots <- sum(cvs == ".")

45

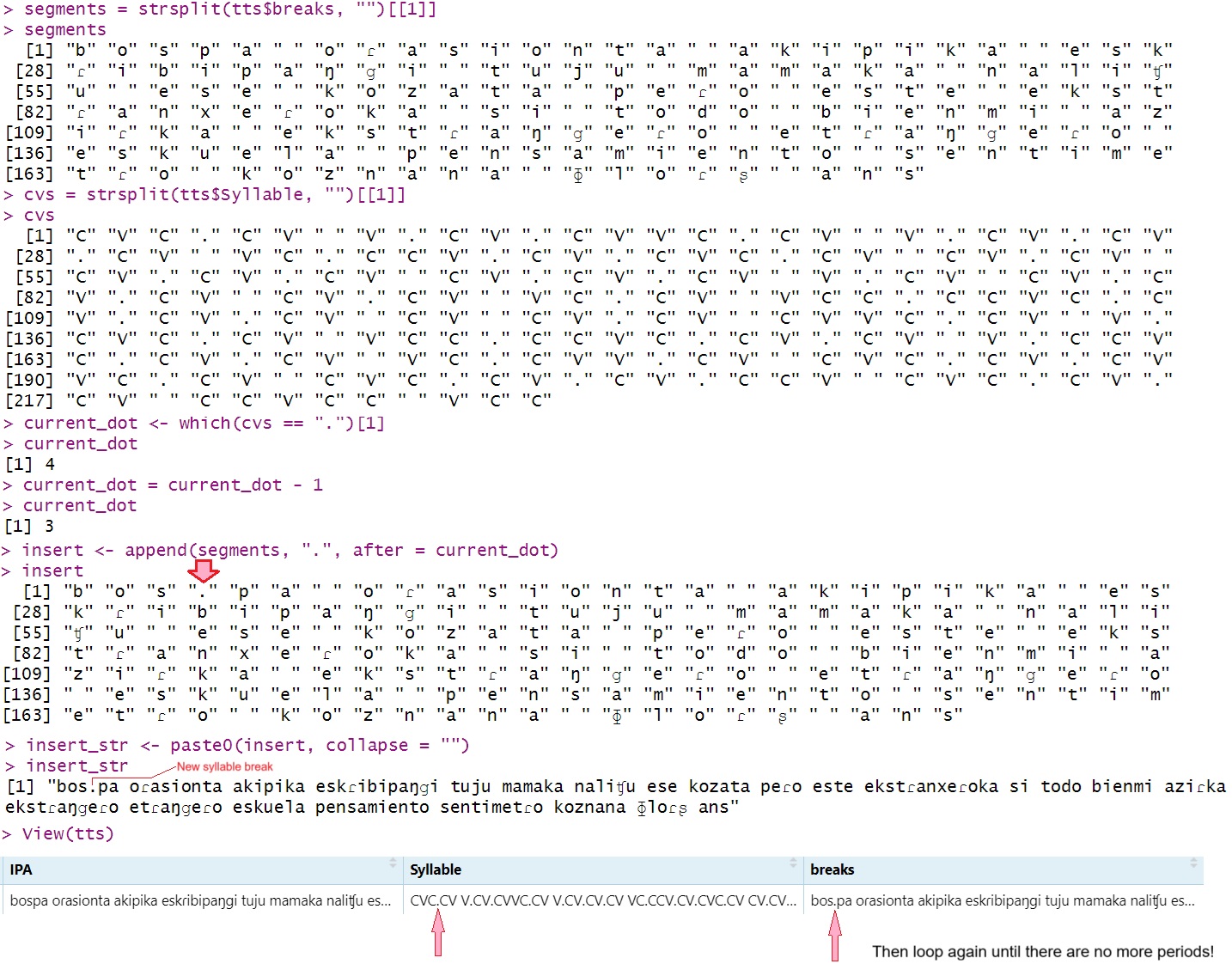

Next, we set up a for loop to place the syllable breaks in the IPA transcription.

for (i in 1:num_dots){
    segments = strsplit(tts$breaks, "")[[1]]
    cvs = strsplit(tts$Syllable, "")[[1]]
    current_dot <- which(cvs == ".")[i]
    current_dot = current_dot - 1
    insert <- append(segments, ".", after = current_dot)
    insert_str <- paste0(insert, collapse = "")
    tts$breaks <- insert_str
}

• i is the place holder.

• 1:num_dots increases the place holder on each loop beginning with 1 and going to 45 (our value in num_dots) - we create a new object called segment where we add in the breaks column (our IPA transcription) split into characters. We’re going doing this on the first row [[1]]. If we had multiple rows, we’d have to add in an additional for loop and I don’t want to put you through that.

• We then do the same for Syllable. We did this previously in cvs, but I’m placing it again in the loop.

• current_dot contains the position of each syllable break in cvs and changes to the next position on each iteration (i).
• We then subtract the position by 1 as we’re going to append the period after the segment that concludes the syllable.

• We then use append to put the period. This gets added to the object named insert.

• This then gets collapsed back into a string.
• This string then gets placed back into breaks to it can be iterated through once again in the loop.

NOW, everything we did would be great if we collected a token for each possible syllable combination. We’ve currently attempted to collect viable tokens by searching through 927 possible combinations. These include:

• Standalone vowels (-V-:a, i, u, o, e)
• Single onsets (C-: m-, p- ɸ-, ʃ- etc.)
• Open syllables with a single onset, (CV: ma-, pi-, ɸo-, ʃu- etc.)
• Open syllables with onset clusters (CCV: tɾ-, pɾi-, ɸlo-, ʃna- etc.)
• Single codas (-C: -m, -n, -l, -s etc.)
• Coda clusters (-CC: -ɾʂ)
• I’ve also added two types of pauses a short pause between words (which really doesn’t exist in natural speech); and a utterance or ‘comma’ pause, which can exist in natural speech.

If we had attempted to collect every possible syllable combination e.g., roughly the 972 open syllable tokens with every potential coda (e.g., sion, tɾam, plas etc.), we would have had to sift through over 16,000 + syllable combinations. Obviously not all of these combinations exist in the language (in fact a majority do not), but the number (and thus workload) would still be high!

Because we didn’t do this, we need to structure our syllables based on the token pattern we collected.
Do do this, we just need to isolate codas, which is actually straightforward.

tts$Syl_tts=tts$Syllable
tts$Syl_tts=gsub("VC", "V.C.",tts$Syl_tts)
tts$Syl_tts=gsub("V.C.C", "V.CC.",tts$Syl_tts)

Here, wherever we have a coda, indicated by a syllable break followed by an onset, we just add a period before the coda isolating it.

• Single coda: VC.C → V.C..C
  • bospa /bospa/ CVC.CV → CV..C.CV ‘you-POSS’

• Coda cluster: V.C.C → V.CC.
  • este /este/ VC.CV → V.C..CV ‘this’
  • extrangero /ekstɾanxeɾo/ VCC.CCVC.CV.CV.CV → V.CC..CCV.C..CV.CV.CV ‘foreigner’

  • flor /ɸloɾʂ/ CCVCC → CCV.CC. ‘flower’

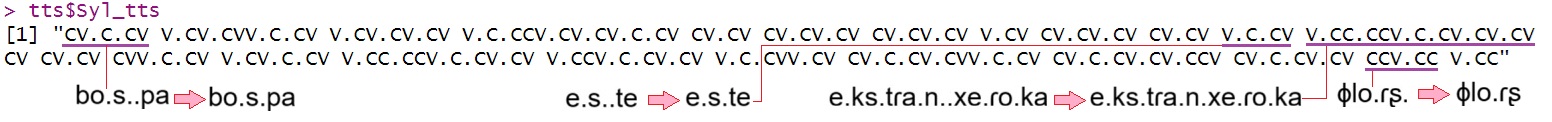

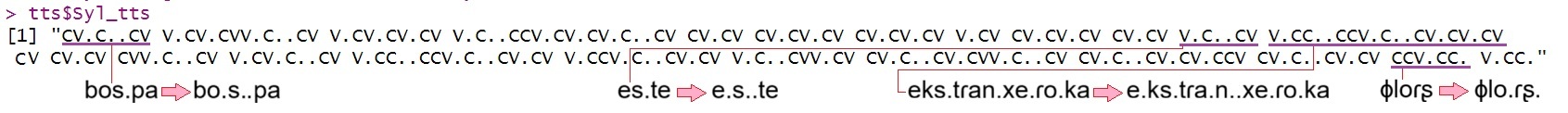

As you can see in the previous image, we now have double syllable breaks that need to be changed to single breaks. And we potentially syllable breaks at the end of the utterance or at the end of a word. We need to clean these up by converting double breaks (..) to single breaks (.) and removing breaks at the end of words (. → ) and the utterance (.$ → ∅).

tts$Syl_tts=gsub("\\.\\.", ".",tts$Syl_tts)
tts$Syl_tts=gsub("\\.$", "",tts$Syl_tts)
tts$Syl_tts=gsub("\\. ", " ",tts$Syl_tts)

• .. → . as in V.C..C → V.C.C
  • bospa /bospa/ CVC.CV → CV.C..CV → CV.C.CV ‘you-POSS’

• . → as in V.CC. → V.CC
  • flor /ɸloɾʂ/ CCVCC → CCV.CC. → CCV.CC

  • flor$ /ɸloɾʂ/ CCVCC$ → CCV.CC.$ → CCV.CC$

Now we can create a new column with the IPA transcription to insert the syllable breaks that aling with our tts tokens.

tts$breaks_tts=tts$IPA

In both breaks_tts and Syl_tts, I’m going to substitute spaces () for P which will insert a pause between each word. I have this set to 80 ms, just so we can more readily identify word boundaries. In natural speech, an actual pause between each word does not happen!

tts$Syl_tts=gsub(" ", "P",tts$Syl_tts)
tts$breaks_tts=gsub(" ", "P",tts$breaks_tts)

• The first line substitutes a space () with P in the Syl_tts column.

• The second line substitutes a space () with P in the breaks_tts column.

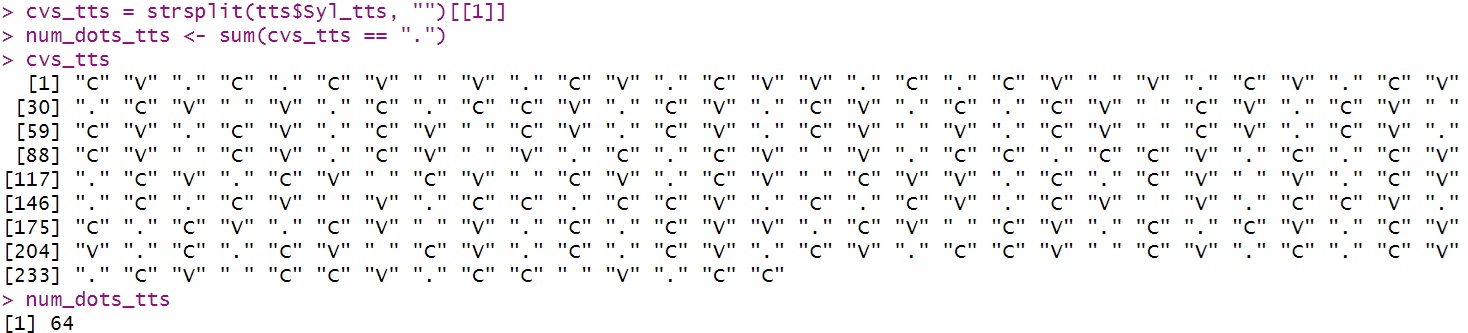

Next, we just repeat the previous code as we prep for the for loop.

cvs_tts = strsplit(tts$Syl_tts, "")[[1]]
num_dots_tts <- sum(cvs_tts == ".")

• cvs_tts splits the string into individual characters.

• num_dots_tts counts the number of syllable breaks (periods).

This is the exact same for loop previously described, but with the new column names replacing the old.

for (i in 1:num_dots_tts){
    segments1 = strsplit(tts$breaks_tts, "")[[1]]
    cvs_tss = strsplit(tts$Syl_tts, "")[[1]]
    current_dot <- which(cvs_tts == ".")[i]
    current_dot = current_dot - 1
    insert <- append(segments1, ".", after = current_dot)
    insert_str <- paste0(insert, collapse = "")
    tts$breaks_tts <- insert_str
}

Now we’re going to codify the transcription

#1
tts$breaks_tts=gsub("\\.(.)\\.", ".C\\1.", tts$breaks_tts)
#2
tts$breaks_tts=gsub("\\.([^aeiou])P", ".C\\1P", tts$breaks_tts)
#3
tts$breaks_tts=gsub("\\.([^aeiou][^aeiou])\\.", ".C\\1.", tts$breaks_tts)
#4
tts$breaks_tts=gsub("\\.([^aeiou][^aeiou])P", ".C\\1P", tts$breaks_tts)
#5
tts$breaks_tts=gsub("\\.([^aeiou][^aeiou])$", ".C\\1", tts$breaks_tts)
#6
tts$breaks_tts=gsub("CC", "C", tts$breaks_tts)
#7
tts$breaks_tts=gsub("P", ".P.", tts$breaks_tts)

• The first line adds a capital C (making it capital is important) after a syllable break that follows anything followed by another syllable break. Putting “anything” (.) in parentheses keeps whatever it is and allows us to insert back in using \\1 in the replacement function. This marks all codas with a C. Capital C is not an IPA character, so it won’t get in the way. Lower case c is an IPA character.
  • Example: bospa /bo.s.pa/ → /bo.Cs.pa/ ‘you-POSS’

• The second line adds a C when the word ends in a non-vowel (consonant) followed by a Pause (\\.[^aeiou]P)

• The third line is the same, but with word-internal coda clusters.

• The fourth line is the same, but with coda clusters before a pause.

• The fifth line is the same, but with coda clusters at the end of an utterance.

• The sixth changes CC to C. Double CC’s were created in the process.

• The seventh line makes P it’s own syllable, by placing periods before and after it. This will be used to call the pause wave file later on.
  • Note that we can use P as a meta character since it’s not IPA. Make sure it’s capitalized though as lower case p is an IPA character.



7 Linking sound tokens

Our string is now parsed up in accordance with our wave files.
Next, we tell r where our files are located on our harddrive.

units_dir = "C:/Courses/CompLING/tts/tokens"

-Here, we put our directory name in the object called units_dir.

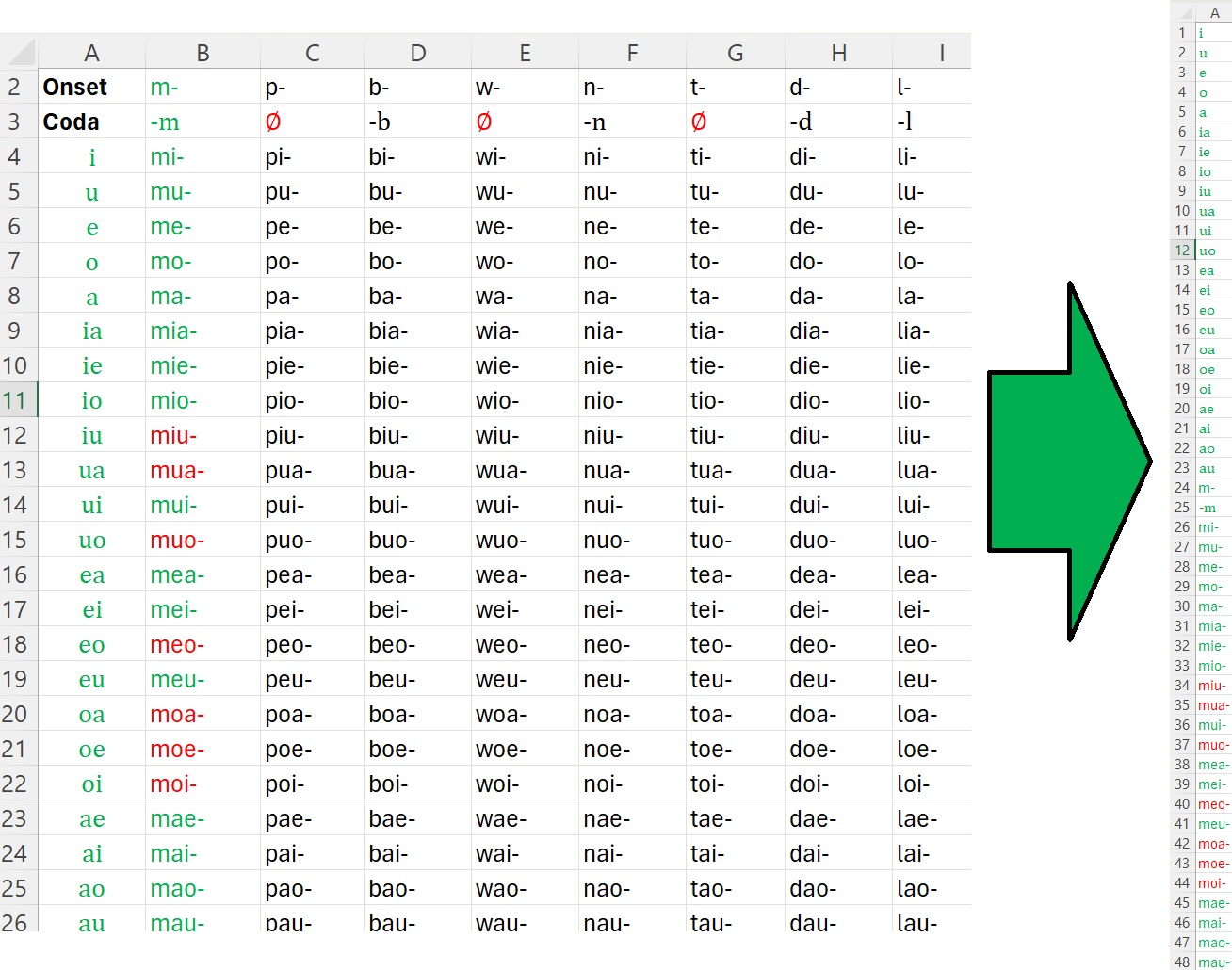

Now, We now have to tell R what the IPA and sound file equivalences are. Basically, we need to link up the segmented transcriptions, based on the periods, to the sound files. To do this, we need to write a large object that says “IPA symbol X = wave file X”. We’re going to build this in Excel since that’s were we have our original “potential syllables” are located. Copy your data into two rows. The first row will be every token you cut in IPA. Like so:

Then we place the file names of each token from the second matrix in the spreadsheet.

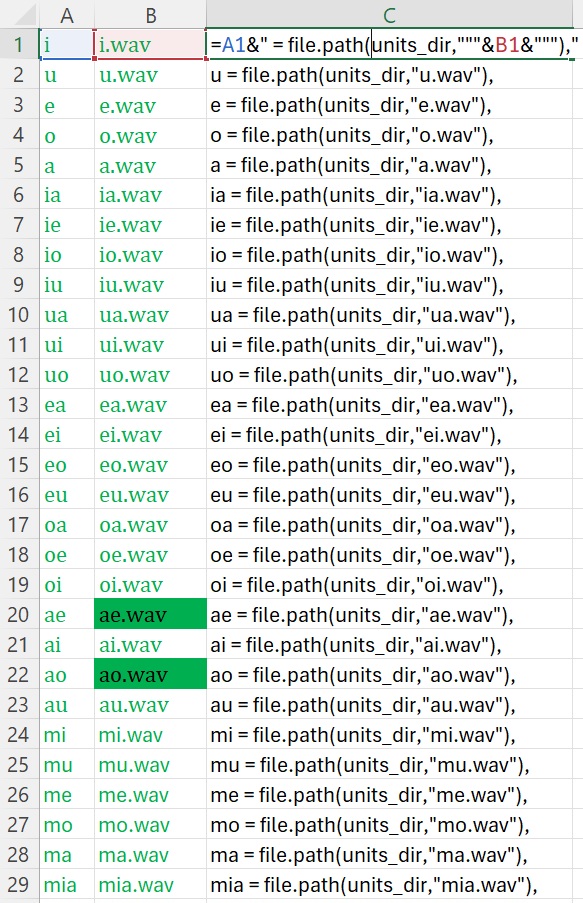

Next, in column C, we entire the following code:

=A1&" = file.path(units_dir,"""&B1&"""),"

This code reads: - Copy the contents of cell A1 (the IPA symbol) and (&) the text = file.path(units_dir," (this will be r code assigning the name of the wave file to the object (the IPA symbol) once we copy it over). - The final quote needs to be escaped as it’s a meta character in Excel. To escape a meta character (and to make things more complicated, we use another quote; so "". We then have our closed quote, so """ 🙄.
- And (&) then we copy in the contents of B1 (the name of the associated wave file).
- Then we add the following text after B1 ", - The first and last quotes encapsulate the text. The second quote removes the meta character function of the third quote, which is now text, so """🙄, followed by a comma, resulting in "),. This will be r code to close the name of the wave file and the comma is used to start the next line.
- We then pull this code to the bottom of the data (or double click the box in the bottom right corner of the cell)

We could remove the text in red, but in the off chance that these represent actual syllables, which were not picked up in the dictionary, we’ll keep them. Better unused lines of code that might be useable in the future, rather than missing lines of code that we have to replace later. Some may disagree, but I’m more about practicality than efficiency of the code (this might be heresy to some programmers).

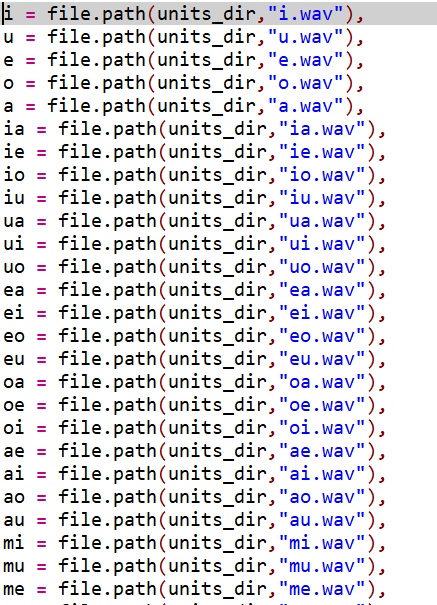

We then copy this string of code into our text editor (make sure it’s set for UTF-8), then paste it in.

Then, at the top, we’ll define our object name, and encapsulate the code in c().

Finally, at the bottom of the code, we’re going to add two more strings.
One for pauses between words and one for utterance final or ‘comma’ pauses.

P = file.path(units_dir,"pause.wav"),
D = file.path(units_dir,"dot.wav")
)

NOTE: The final string does not end in a comma as there is no continuation. A final parenthesis ()), is also needed to close off the string.

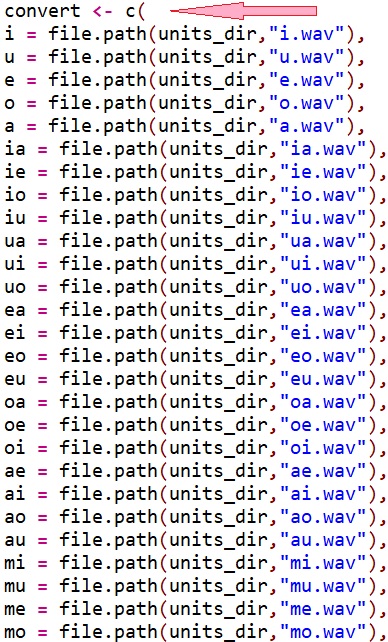

Click here to reveal the r code:

convert <- c(
i = file.path(units_dir,"i.wav"),
u = file.path(units_dir,"u.wav"),
e = file.path(units_dir,"e.wav"),
o = file.path(units_dir,"o.wav"),
a = file.path(units_dir,"a.wav"),
ia = file.path(units_dir,"ia.wav"),
ie = file.path(units_dir,"ie.wav"),
io = file.path(units_dir,"io.wav"),
iu = file.path(units_dir,"iu.wav"),
ua = file.path(units_dir,"ua.wav"),
ui = file.path(units_dir,"ui.wav"),
uo = file.path(units_dir,"uo.wav"),
ea = file.path(units_dir,"ea.wav"),
ei = file.path(units_dir,"ei.wav"),
eo = file.path(units_dir,"eo.wav"),
eu = file.path(units_dir,"eu.wav"),
oa = file.path(units_dir,"oa.wav"),
oe = file.path(units_dir,"oe.wav"),
oi = file.path(units_dir,"oi.wav"),
ae = file.path(units_dir,"ae.wav"),
ai = file.path(units_dir,"ai.wav"),
ao = file.path(units_dir,"ao.wav"),
au = file.path(units_dir,"au.wav"),
mi = file.path(units_dir,"mi.wav"),
mu = file.path(units_dir,"mu.wav"),
me = file.path(units_dir,"me.wav"),
mo = file.path(units_dir,"mo.wav"),
ma = file.path(units_dir,"ma.wav"),
mia = file.path(units_dir,"mia.wav"),
mie = file.path(units_dir,"mie.wav"),
mio = file.path(units_dir,"mio.wav"),
miu = file.path(units_dir,"miu.wav"),
mua = file.path(units_dir,"mua.wav"),
mui = file.path(units_dir,"mui.wav"),
muo = file.path(units_dir,"muo.wav"),
mea = file.path(units_dir,"mea.wav"),
mei = file.path(units_dir,"mei.wav"),
meo = file.path(units_dir,"meo.wav"),
meu = file.path(units_dir,"meu.wav"),
moa = file.path(units_dir,"moa.wav"),
moe = file.path(units_dir,"moe.wav"),
moi = file.path(units_dir,"moi.wav"),
mae = file.path(units_dir,"mae.wav"),
mai = file.path(units_dir,"mai.wav"),
mao = file.path(units_dir,"mao.wav"),
mau = file.path(units_dir,"mau.wav"),
pi = file.path(units_dir,"pi.wav"),
pu = file.path(units_dir,"pu.wav"),
pe = file.path(units_dir,"pe.wav"),
po = file.path(units_dir,"po.wav"),
pa = file.path(units_dir,"pa.wav"),
pia = file.path(units_dir,"pia.wav"),
pie = file.path(units_dir,"pie.wav"),
pio = file.path(units_dir,"pio.wav"),
piu = file.path(units_dir,"piu.wav"),
pua = file.path(units_dir,"pua.wav"),
pui = file.path(units_dir,"pui.wav"),
puo = file.path(units_dir,"puo.wav"),
pea = file.path(units_dir,"pea.wav"),
pei = file.path(units_dir,"pei.wav"),
peo = file.path(units_dir,"peo.wav"),
peu = file.path(units_dir,"peu.wav"),
poa = file.path(units_dir,"poa.wav"),
poe = file.path(units_dir,"poe.wav"),
poi = file.path(units_dir,"poi.wav"),
pae = file.path(units_dir,"pae.wav"),
pai = file.path(units_dir,"pai.wav"),
pao = file.path(units_dir,"pao.wav"),
pau = file.path(units_dir,"pau.wav"),
bi = file.path(units_dir,"bi.wav"),
bu = file.path(units_dir,"bu.wav"),
be = file.path(units_dir,"be.wav"),
bo = file.path(units_dir,"bo.wav"),
ba = file.path(units_dir,"ba.wav"),
bia = file.path(units_dir,"bia.wav"),
bie = file.path(units_dir,"bie.wav"),
bio = file.path(units_dir,"bio.wav"),
biu = file.path(units_dir,"biu.wav"),
bua = file.path(units_dir,"bua.wav"),
bui = file.path(units_dir,"bui.wav"),
buo = file.path(units_dir,"buo.wav"),
bea = file.path(units_dir,"bea.wav"),
bei = file.path(units_dir,"bei.wav"),
beo = file.path(units_dir,"beo.wav"),
beu = file.path(units_dir,"beu.wav"),
boa = file.path(units_dir,"boa.wav"),
boe = file.path(units_dir,"boe.wav"),
boi = file.path(units_dir,"boi.wav"),
bae = file.path(units_dir,"bae.wav"),
bai = file.path(units_dir,"bai.wav"),
bao = file.path(units_dir,"bao.wav"),
bau = file.path(units_dir,"bau.wav"),
wi = file.path(units_dir,"wi.wav"),
wu = file.path(units_dir,"wu.wav"),
we = file.path(units_dir,"we.wav"),
wo = file.path(units_dir,"wo.wav"),
wa = file.path(units_dir,"wa.wav"),
wia = file.path(units_dir,"wia.wav"),
wie = file.path(units_dir,"wie.wav"),
wio = file.path(units_dir,"wio.wav"),
wiu = file.path(units_dir,"wiu.wav"),
wua = file.path(units_dir,"wua.wav"),
wui = file.path(units_dir,"wui.wav"),
wuo = file.path(units_dir,"wuo.wav"),
wea = file.path(units_dir,"wea.wav"),
wei = file.path(units_dir,"wei.wav"),
weo = file.path(units_dir,"weo.wav"),
weu = file.path(units_dir,"weu.wav"),
woa = file.path(units_dir,"woa.wav"),
woe = file.path(units_dir,"woe.wav"),
woi = file.path(units_dir,"woi.wav"),
wae = file.path(units_dir,"wae.wav"),
wai = file.path(units_dir,"wai.wav"),
wao = file.path(units_dir,"wao.wav"),
wau = file.path(units_dir,"wau.wav"),
ni = file.path(units_dir,"ni.wav"),
nu = file.path(units_dir,"nu.wav"),
ne = file.path(units_dir,"ne.wav"),
no = file.path(units_dir,"no.wav"),
na = file.path(units_dir,"na.wav"),
nia = file.path(units_dir,"nia.wav"),
nie = file.path(units_dir,"nie.wav"),
nio = file.path(units_dir,"nio.wav"),
niu = file.path(units_dir,"niu.wav"),
nua = file.path(units_dir,"nua.wav"),
nui = file.path(units_dir,"nui.wav"),
nuo = file.path(units_dir,"nuo.wav"),
nea = file.path(units_dir,"nea.wav"),
nei = file.path(units_dir,"nei.wav"),
neo = file.path(units_dir,"neo.wav"),
neu = file.path(units_dir,"neu.wav"),
noa = file.path(units_dir,"noa.wav"),
noe = file.path(units_dir,"noe.wav"),
noi = file.path(units_dir,"noi.wav"),
nae = file.path(units_dir,"nae.wav"),
nai = file.path(units_dir,"nai.wav"),
nao = file.path(units_dir,"nao.wav"),
nau = file.path(units_dir,"nau.wav"),
ti = file.path(units_dir,"ti.wav"),
tu = file.path(units_dir,"tu.wav"),
te = file.path(units_dir,"te.wav"),
to = file.path(units_dir,"to.wav"),
ta = file.path(units_dir,"ta.wav"),
tia = file.path(units_dir,"tia.wav"),
tie = file.path(units_dir,"tie.wav"),
tio = file.path(units_dir,"tio.wav"),
tiu = file.path(units_dir,"tiu.wav"),
tua = file.path(units_dir,"tua.wav"),
tui = file.path(units_dir,"tui.wav"),
tuo = file.path(units_dir,"tuo.wav"),
tea = file.path(units_dir,"tea.wav"),
tei = file.path(units_dir,"tei.wav"),
teo = file.path(units_dir,"teo.wav"),
teu = file.path(units_dir,"teu.wav"),
toa = file.path(units_dir,"toa.wav"),
toe = file.path(units_dir,"toe.wav"),
toi = file.path(units_dir,"toi.wav"),
tae = file.path(units_dir,"tae.wav"),
tai = file.path(units_dir,"tai.wav"),
tao = file.path(units_dir,"tao.wav"),
tau = file.path(units_dir,"tau.wav"),
di = file.path(units_dir,"di.wav"),
du = file.path(units_dir,"du.wav"),
de = file.path(units_dir,"de.wav"),
do = file.path(units_dir,"do.wav"),
da = file.path(units_dir,"da.wav"),
dia = file.path(units_dir,"dia.wav"),
die = file.path(units_dir,"die.wav"),
dio = file.path(units_dir,"dio.wav"),
diu = file.path(units_dir,"diu.wav"),
dua = file.path(units_dir,"dua.wav"),
dui = file.path(units_dir,"dui.wav"),
duo = file.path(units_dir,"duo.wav"),
dea = file.path(units_dir,"dea.wav"),
dei = file.path(units_dir,"dei.wav"),
deo = file.path(units_dir,"deo.wav"),
deu = file.path(units_dir,"deu.wav"),
doa = file.path(units_dir,"doa.wav"),
doe = file.path(units_dir,"doe.wav"),
doi = file.path(units_dir,"doi.wav"),
dae = file.path(units_dir,"dae.wav"),
dai = file.path(units_dir,"dai.wav"),
dao = file.path(units_dir,"dao.wav"),
dau = file.path(units_dir,"dau.wav"),
li = file.path(units_dir,"li.wav"),
lu = file.path(units_dir,"lu.wav"),
le = file.path(units_dir,"le.wav"),
lo = file.path(units_dir,"lo.wav"),
la = file.path(units_dir,"la.wav"),
lia = file.path(units_dir,"lia.wav"),
lie = file.path(units_dir,"lie.wav"),
lio = file.path(units_dir,"lio.wav"),
liu = file.path(units_dir,"liu.wav"),
lua = file.path(units_dir,"lua.wav"),
lui = file.path(units_dir,"lui.wav"),
luo = file.path(units_dir,"luo.wav"),
lea = file.path(units_dir,"lea.wav"),
lei = file.path(units_dir,"lei.wav"),
leo = file.path(units_dir,"leo.wav"),
leu = file.path(units_dir,"leu.wav"),
loa = file.path(units_dir,"loa.wav"),
loe = file.path(units_dir,"loe.wav"),
loi = file.path(units_dir,"loi.wav"),
lae = file.path(units_dir,"lae.wav"),
lai = file.path(units_dir,"lai.wav"),
lao = file.path(units_dir,"lao.wav"),
lau = file.path(units_dir,"lau.wav"),
si = file.path(units_dir,"si.wav"),
su = file.path(units_dir,"su.wav"),
se = file.path(units_dir,"se.wav"),
so = file.path(units_dir,"so.wav"),
sa = file.path(units_dir,"sa.wav"),
sia = file.path(units_dir,"sia.wav"),
sie = file.path(units_dir,"sie.wav"),
sio = file.path(units_dir,"sio.wav"),
siu = file.path(units_dir,"siu.wav"),
sua = file.path(units_dir,"sua.wav"),
sui = file.path(units_dir,"sui.wav"),
suo = file.path(units_dir,"suo.wav"),
sea = file.path(units_dir,"sea.wav"),
sei = file.path(units_dir,"sei.wav"),
seo = file.path(units_dir,"seo.wav"),
seu = file.path(units_dir,"seu.wav"),
soa = file.path(units_dir,"soa.wav"),
soe = file.path(units_dir,"soe.wav"),
soi = file.path(units_dir,"soi.wav"),
sae = file.path(units_dir,"sae.wav"),
sai = file.path(units_dir,"sai.wav"),
sao = file.path(units_dir,"sao.wav"),
sau = file.path(units_dir,"sau.wav"),
zi = file.path(units_dir,"zi.wav"),
zu = file.path(units_dir,"zu.wav"),
ze = file.path(units_dir,"ze.wav"),
zo = file.path(units_dir,"zo.wav"),
za = file.path(units_dir,"za.wav"),
zia = file.path(units_dir,"zia.wav"),
zie = file.path(units_dir,"zie.wav"),
zio = file.path(units_dir,"zio.wav"),
ziu = file.path(units_dir,"ziu.wav"),
zua = file.path(units_dir,"zua.wav"),
zui = file.path(units_dir,"zui.wav"),
zuo = file.path(units_dir,"zuo.wav"),
zea = file.path(units_dir,"zea.wav"),
zei = file.path(units_dir,"zei.wav"),
zeo = file.path(units_dir,"zeo.wav"),
zeu = file.path(units_dir,"zeu.wav"),
zoa = file.path(units_dir,"zoa.wav"),
zoe = file.path(units_dir,"zoe.wav"),
zoi = file.path(units_dir,"zoi.wav"),
zae = file.path(units_dir,"zae.wav"),
zai = file.path(units_dir,"zai.wav"),
zao = file.path(units_dir,"zao.wav"),
zau = file.path(units_dir,"zau.wav"),
ɾi = file.path(units_dir,"ri.wav"),
ɾu = file.path(units_dir,"ru.wav"),
ɾe = file.path(units_dir,"re.wav"),
ɾo = file.path(units_dir,"ro.wav"),
ɾa = file.path(units_dir,"ra.wav"),
ɾia = file.path(units_dir,"ria.wav"),
ɾie = file.path(units_dir,"rie.wav"),
ɾio = file.path(units_dir,"rio.wav"),
ɾiu = file.path(units_dir,"riu.wav"),
ɾua = file.path(units_dir,"rua.wav"),
ɾui = file.path(units_dir,"rui.wav"),
ɾuo = file.path(units_dir,"ruo.wav"),
ɾea = file.path(units_dir,"rea.wav"),
ɾei = file.path(units_dir,"rei.wav"),
ɾeo = file.path(units_dir,"reo.wav"),
ɾeu = file.path(units_dir,"reu.wav"),
ɾoa = file.path(units_dir,"roa.wav"),
ɾoe = file.path(units_dir,"roe.wav"),
ɾoi = file.path(units_dir,"roi.wav"),
ɾae = file.path(units_dir,"rae.wav"),
ɾai = file.path(units_dir,"rai.wav"),
ɾao = file.path(units_dir,"rao.wav"),
ɾau = file.path(units_dir,"rau.wav"),
ʃi = file.path(units_dir,"shi.wav"),
ʃu = file.path(units_dir,"shu.wav"),
ʃe = file.path(units_dir,"she.wav"),
ʃo = file.path(units_dir,"sho.wav"),
ʃa = file.path(units_dir,"sha.wav"),
ʃia = file.path(units_dir,"shia.wav"),
ʃie = file.path(units_dir,"shie.wav"),
ʃio = file.path(units_dir,"shio.wav"),
ʃiu = file.path(units_dir,"shiu.wav"),
ʃua = file.path(units_dir,"shua.wav"),
ʃui = file.path(units_dir,"shui.wav"),
ʃuo = file.path(units_dir,"shuo.wav"),
ʃea = file.path(units_dir,"shea.wav"),
ʃei = file.path(units_dir,"shei.wav"),
ʃeo = file.path(units_dir,"sheo.wav"),
ʃeu = file.path(units_dir,"sheu.wav"),
ʃoa = file.path(units_dir,"shoa.wav"),
ʃoe = file.path(units_dir,"shoe.wav"),
ʃoi = file.path(units_dir,"shoi.wav"),
ʃae = file.path(units_dir,"shae.wav"),
ʃai = file.path(units_dir,"shai.wav"),
ʃao = file.path(units_dir,"shao.wav"),
ʃau = file.path(units_dir,"shau.wav"),
ʒi = file.path(units_dir,"lli.wav"),
ʒu = file.path(units_dir,"llu.wav"),
ʒe = file.path(units_dir,"lle.wav"),
ʒo = file.path(units_dir,"llo.wav"),
ʒa = file.path(units_dir,"lla.wav"),
ʒia = file.path(units_dir,"llia.wav"),
ʒie = file.path(units_dir,"llie.wav"),
ʒio = file.path(units_dir,"llio.wav"),
ʒiu = file.path(units_dir,"lliu.wav"),
ʒua = file.path(units_dir,"llua.wav"),
ʒui = file.path(units_dir,"llui.wav"),
ʒuo = file.path(units_dir,"lluo.wav"),
ʒea = file.path(units_dir,"llea.wav"),
ʒei = file.path(units_dir,"llei.wav"),
ʒeo = file.path(units_dir,"lleo.wav"),
ʒeu = file.path(units_dir,"lleu.wav"),
ʒoa = file.path(units_dir,"lloa.wav"),
ʒoe = file.path(units_dir,"lloe.wav"),
ʒoi = file.path(units_dir,"lloi.wav"),
ʒae = file.path(units_dir,"llae.wav"),
ʒai = file.path(units_dir,"llai.wav"),
ʒao = file.path(units_dir,"llao.wav"),
ʒau = file.path(units_dir,"llau.wav"),
ʐi = file.path(units_dir,"rri.wav"),
ʐu = file.path(units_dir,"rru.wav"),
ʐe = file.path(units_dir,"rre.wav"),
ʐo = file.path(units_dir,"rro.wav"),
ʐa = file.path(units_dir,"rra.wav"),
ʐia = file.path(units_dir,"rria.wav"),
ʐie = file.path(units_dir,"rrie.wav"),
ʐio = file.path(units_dir,"rrio.wav"),
ʐiu = file.path(units_dir,"rriu.wav"),
ʐua = file.path(units_dir,"rrua.wav"),
ʐui = file.path(units_dir,"rrui.wav"),
ʐuo = file.path(units_dir,"rruo.wav"),
ʐea = file.path(units_dir,"rrea.wav"),
ʐei = file.path(units_dir,"rrei.wav"),
ʐeo = file.path(units_dir,"rreo.wav"),
ʐeu = file.path(units_dir,"rreu.wav"),
ʐoa = file.path(units_dir,"rroa.wav"),
ʐoe = file.path(units_dir,"rroe.wav"),
ʐoi = file.path(units_dir,"rroi.wav"),
ʐae = file.path(units_dir,"rrae.wav"),
ʐai = file.path(units_dir,"rrai.wav"),
ʐao = file.path(units_dir,"rrao.wav"),
ʐau = file.path(units_dir,"rrau.wav"),
ɲi = file.path(units_dir,"nhi.wav"),
ɲu = file.path(units_dir,"nhu.wav"),
ɲe = file.path(units_dir,"nhe.wav"),
ɲo = file.path(units_dir,"nho.wav"),
ɲa = file.path(units_dir,"nha.wav"),
ɲia = file.path(units_dir,"nhia.wav"),
ɲie = file.path(units_dir,"nhie.wav"),
ɲio = file.path(units_dir,"nhio.wav"),
ɲiu = file.path(units_dir,"nhiu.wav"),
ɲua = file.path(units_dir,"nhua.wav"),
ɲui = file.path(units_dir,"nhui.wav"),
ɲuo = file.path(units_dir,"nhuo.wav"),
ɲea = file.path(units_dir,"nhea.wav"),
ɲei = file.path(units_dir,"nhei.wav"),
ɲeo = file.path(units_dir,"nheo.wav"),
ɲeu = file.path(units_dir,"nheu.wav"),
ɲoa = file.path(units_dir,"nhoa.wav"),
ɲoe = file.path(units_dir,"nhoe.wav"),
ɲoi = file.path(units_dir,"nhoi.wav"),
ɲae = file.path(units_dir,"nhae.wav"),
ɲai = file.path(units_dir,"nhai.wav"),
ɲao = file.path(units_dir,"nhao.wav"),
ɲau = file.path(units_dir,"nhau.wav"),
ji = file.path(units_dir,"ji.wav"),
ju = file.path(units_dir,"ju.wav"),
je = file.path(units_dir,"je.wav"),
jo = file.path(units_dir,"jo.wav"),
ja = file.path(units_dir,"ja.wav"),
jia = file.path(units_dir,"jia.wav"),
jie = file.path(units_dir,"jie.wav"),
jio = file.path(units_dir,"jio.wav"),
jiu = file.path(units_dir,"jiu.wav"),
jua = file.path(units_dir,"jua.wav"),
jui = file.path(units_dir,"jui.wav"),
juo = file.path(units_dir,"juo.wav"),
jea = file.path(units_dir,"jea.wav"),
jei = file.path(units_dir,"jei.wav"),
jeo = file.path(units_dir,"jeo.wav"),
jeu = file.path(units_dir,"jeu.wav"),
joa = file.path(units_dir,"joa.wav"),
joe = file.path(units_dir,"joe.wav"),
joi = file.path(units_dir,"joi.wav"),
jae = file.path(units_dir,"jae.wav"),
jai = file.path(units_dir,"jai.wav"),
jao = file.path(units_dir,"jao.wav"),
jau = file.path(units_dir,"jau.wav"),
ki = file.path(units_dir,"ki.wav"),
ku = file.path(units_dir,"ku.wav"),
ke = file.path(units_dir,"ke.wav"),
ko = file.path(units_dir,"ko.wav"),
ka = file.path(units_dir,"ka.wav"),
kia = file.path(units_dir,"kia.wav"),
kie = file.path(units_dir,"kie.wav"),
kio = file.path(units_dir,"kio.wav"),
kiu = file.path(units_dir,"kiu.wav"),
kua = file.path(units_dir,"kua.wav"),
kui = file.path(units_dir,"kui.wav"),
kue = file.path(units_dir,"kue.wav"),
kuo = file.path(units_dir,"kuo.wav"),
kea = file.path(units_dir,"kea.wav"),
kei = file.path(units_dir,"kei.wav"),
keo = file.path(units_dir,"keo.wav"),
keu = file.path(units_dir,"keu.wav"),
koa = file.path(units_dir,"koa.wav"),
koe = file.path(units_dir,"koe.wav"),
koi = file.path(units_dir,"koi.wav"),
kae = file.path(units_dir,"kae.wav"),
kai = file.path(units_dir,"kai.wav"),
kao = file.path(units_dir,"kao.wav"),
kau = file.path(units_dir,"kau.wav"),
ɡi = file.path(units_dir,"gi.wav"),
ɡu = file.path(units_dir,"gu.wav"),
ɡe = file.path(units_dir,"ge.wav"),
ɡo = file.path(units_dir,"go.wav"),
ɡa = file.path(units_dir,"ga.wav"),
ɡia = file.path(units_dir,"gia.wav"),
ɡie = file.path(units_dir,"gie.wav"),
ɡio = file.path(units_dir,"gio.wav"),
ɡiu = file.path(units_dir,"giu.wav"),
ɡua = file.path(units_dir,"gua.wav"),
ɡui = file.path(units_dir,"gui.wav"),
ɡuo = file.path(units_dir,"guo.wav"),
ɡea = file.path(units_dir,"gea.wav"),
ɡei = file.path(units_dir,"gei.wav"),
ɡeo = file.path(units_dir,"geo.wav"),
ɡeu = file.path(units_dir,"geu.wav"),
ɡoa = file.path(units_dir,"goa.wav"),
ɡoe = file.path(units_dir,"goe.wav"),
ɡoi = file.path(units_dir,"goi.wav"),
ɡae = file.path(units_dir,"gae.wav"),
ɡai = file.path(units_dir,"gai.wav"),
ɡao = file.path(units_dir,"gao.wav"),
ɡau = file.path(units_dir,"gau.wav"),
xi = file.path(units_dir,"xi.wav"),
xu = file.path(units_dir,"xu.wav"),
xe = file.path(units_dir,"xe.wav"),
xo = file.path(units_dir,"xo.wav"),
xa = file.path(units_dir,"xa.wav"),
xia = file.path(units_dir,"xia.wav"),
xie = file.path(units_dir,"xie.wav"),
xio = file.path(units_dir,"xio.wav"),
xiu = file.path(units_dir,"xiu.wav"),
xua = file.path(units_dir,"xua.wav"),
xui = file.path(units_dir,"xui.wav"),
xuo = file.path(units_dir,"xuo.wav"),
xea = file.path(units_dir,"xea.wav"),
xei = file.path(units_dir,"xei.wav"),
xeo = file.path(units_dir,"xeo.wav"),
xeu = file.path(units_dir,"xeu.wav"),
xoa = file.path(units_dir,"xoa.wav"),
xoe = file.path(units_dir,"xoe.wav"),
xoi = file.path(units_dir,"xoi.wav"),
xae = file.path(units_dir,"xae.wav"),
xai = file.path(units_dir,"xai.wav"),
xao = file.path(units_dir,"xao.wav"),
xau = file.path(units_dir,"xau.wav"),
ɸi = file.path(units_dir,"fi.wav"),
ɸu = file.path(units_dir,"fu.wav"),
ɸe = file.path(units_dir,"fe.wav"),
ɸo = file.path(units_dir,"fo.wav"),
ɸa = file.path(units_dir,"fa.wav"),
ɸia = file.path(units_dir,"fia.wav"),
ɸie = file.path(units_dir,"fie.wav"),
ɸio = file.path(units_dir,"fio.wav"),
ɸiu = file.path(units_dir,"fiu.wav"),
ɸua = file.path(units_dir,"fua.wav"),
ɸui = file.path(units_dir,"fui.wav"),
ɸuo = file.path(units_dir,"fuo.wav"),
ɸea = file.path(units_dir,"fea.wav"),
ɸei = file.path(units_dir,"fei.wav"),
ɸeo = file.path(units_dir,"feo.wav"),
ɸeu = file.path(units_dir,"feu.wav"),
ɸoa = file.path(units_dir,"foa.wav"),
ɸoe = file.path(units_dir,"foe.wav"),
ɸoi = file.path(units_dir,"foi.wav"),
ɸae = file.path(units_dir,"fae.wav"),
ɸai = file.path(units_dir,"fai.wav"),
ɸao = file.path(units_dir,"fao.wav"),
ɸau = file.path(units_dir,"fau.wav"),
pli = file.path(units_dir,"pli.wav"),
plu = file.path(units_dir,"plu.wav"),
ple = file.path(units_dir,"ple.wav"),
plo = file.path(units_dir,"plo.wav"),
pla = file.path(units_dir,"pla.wav"),
plia = file.path(units_dir,"plia.wav"),
plie = file.path(units_dir,"plie.wav"),
plio = file.path(units_dir,"plio.wav"),
pliu = file.path(units_dir,"pliu.wav"),
plua = file.path(units_dir,"plua.wav"),
plui = file.path(units_dir,"plui.wav"),
pluo = file.path(units_dir,"pluo.wav"),
plea = file.path(units_dir,"plea.wav"),
plei = file.path(units_dir,"plei.wav"),
pleo = file.path(units_dir,"pleo.wav"),
pleu = file.path(units_dir,"pleu.wav"),
ploa = file.path(units_dir,"ploa.wav"),
ploe = file.path(units_dir,"ploe.wav"),
ploi = file.path(units_dir,"ploi.wav"),
plae = file.path(units_dir,"plae.wav"),
plai = file.path(units_dir,"plai.wav"),
plao = file.path(units_dir,"plao.wav"),
plau = file.path(units_dir,"plau.wav"),
pɾi = file.path(units_dir,"pri.wav"),
pɾu = file.path(units_dir,"pru.wav"),
pɾe = file.path(units_dir,"pre.wav"),
pɾo = file.path(units_dir,"pro.wav"),
pɾa = file.path(units_dir,"pra.wav"),
pɾia = file.path(units_dir,"pria.wav"),
pɾie = file.path(units_dir,"prie.wav"),
pɾio = file.path(units_dir,"prio.wav"),
pɾiu = file.path(units_dir,"priu.wav"),
pɾua = file.path(units_dir,"prua.wav"),
pɾui = file.path(units_dir,"prui.wav"),
pɾuo = file.path(units_dir,"pruo.wav"),
pɾea = file.path(units_dir,"prea.wav"),
pɾei = file.path(units_dir,"prei.wav"),
pɾeo = file.path(units_dir,"preo.wav"),
pɾeu = file.path(units_dir,"preu.wav"),
pɾoa = file.path(units_dir,"proa.wav"),
pɾoe = file.path(units_dir,"proe.wav"),
pɾoi = file.path(units_dir,"proi.wav"),
pɾae = file.path(units_dir,"prae.wav"),
pɾai = file.path(units_dir,"prai.wav"),
pɾao = file.path(units_dir,"prao.wav"),
pɾau = file.path(units_dir,"prau.wav"),
bli = file.path(units_dir,"bli.wav"),
blu = file.path(units_dir,"blu.wav"),
ble = file.path(units_dir,"ble.wav"),
blo = file.path(units_dir,"blo.wav"),
bla = file.path(units_dir,"bla.wav"),
blia = file.path(units_dir,"blia.wav"),
blie = file.path(units_dir,"blie.wav"),
blio = file.path(units_dir,"blio.wav"),
bliu = file.path(units_dir,"bliu.wav"),
blua = file.path(units_dir,"blua.wav"),
blui = file.path(units_dir,"blui.wav"),
bluo = file.path(units_dir,"bluo.wav"),
blea = file.path(units_dir,"blea.wav"),
blei = file.path(units_dir,"blei.wav"),
bleo = file.path(units_dir,"bleo.wav"),
bleu = file.path(units_dir,"bleu.wav"),
bloa = file.path(units_dir,"bloa.wav"),
bloe = file.path(units_dir,"bloe.wav"),
bloi = file.path(units_dir,"bloi.wav"),
blae = file.path(units_dir,"blae.wav"),
blai = file.path(units_dir,"blai.wav"),
blao = file.path(units_dir,"blao.wav"),
blau = file.path(units_dir,"blau.wav"),
bɾi = file.path(units_dir,"bri.wav"),
bɾu = file.path(units_dir,"bru.wav"),
bɾe = file.path(units_dir,"bre.wav"),
bɾo = file.path(units_dir,"bro.wav"),
bɾa = file.path(units_dir,"bra.wav"),
bɾia = file.path(units_dir,"bria.wav"),
bɾie = file.path(units_dir,"brie.wav"),
bɾio = file.path(units_dir,"brio.wav"),
bɾiu = file.path(units_dir,"briu.wav"),
bɾua = file.path(units_dir,"brua.wav"),
bɾui = file.path(units_dir,"brui.wav"),
bɾuo = file.path(units_dir,"bruo.wav"),
bɾea = file.path(units_dir,"brea.wav"),
bɾei = file.path(units_dir,"brei.wav"),
bɾeo = file.path(units_dir,"breo.wav"),
bɾeu = file.path(units_dir,"breu.wav"),
bɾoa = file.path(units_dir,"broa.wav"),
bɾoe = file.path(units_dir,"broe.wav"),
bɾoi = file.path(units_dir,"broi.wav"),
bɾae = file.path(units_dir,"brae.wav"),
bɾai = file.path(units_dir,"brai.wav"),
bɾao = file.path(units_dir,"brao.wav"),
bɾau = file.path(units_dir,"brau.wav"),
tɾi = file.path(units_dir,"tri.wav"),
tɾu = file.path(units_dir,"tru.wav"),
tɾe = file.path(units_dir,"tre.wav"),
tɾo = file.path(units_dir,"tro.wav"),
tɾa = file.path(units_dir,"tra.wav"),
tɾia = file.path(units_dir,"tria.wav"),
tɾie = file.path(units_dir,"trie.wav"),
tɾio = file.path(units_dir,"trio.wav"),
tɾiu = file.path(units_dir,"triu.wav"),
tɾua = file.path(units_dir,"trua.wav"),
tɾui = file.path(units_dir,"trui.wav"),
tɾuo = file.path(units_dir,"truo.wav"),
tɾea = file.path(units_dir,"trea.wav"),
tɾei = file.path(units_dir,"trei.wav"),
tɾeo = file.path(units_dir,"treo.wav"),
tɾeu = file.path(units_dir,"treu.wav"),
tɾoa = file.path(units_dir,"troa.wav"),
tɾoe = file.path(units_dir,"troe.wav"),
tɾoi = file.path(units_dir,"troi.wav"),
tɾae = file.path(units_dir,"trae.wav"),
tɾai = file.path(units_dir,"trai.wav"),
tɾao = file.path(units_dir,"trao.wav"),
tɾau = file.path(units_dir,"trau.wav"),
dɾi = file.path(units_dir,"dri.wav"),
dɾu = file.path(units_dir,"dru.wav"),
dɾe = file.path(units_dir,"dre.wav"),
dɾo = file.path(units_dir,"dro.wav"),
dɾa = file.path(units_dir,"dra.wav"),
dɾia = file.path(units_dir,"dria.wav"),
dɾie = file.path(units_dir,"drie.wav"),
dɾio = file.path(units_dir,"drio.wav"),
dɾiu = file.path(units_dir,"driu.wav"),
dɾua = file.path(units_dir,"drua.wav"),
dɾui = file.path(units_dir,"drui.wav"),
dɾuo = file.path(units_dir,"druo.wav"),
dɾea = file.path(units_dir,"drea.wav"),
dɾei = file.path(units_dir,"drei.wav"),
dɾeo = file.path(units_dir,"dreo.wav"),
dɾeu = file.path(units_dir,"dreu.wav"),
dɾoa = file.path(units_dir,"droa.wav"),
dɾoe = file.path(units_dir,"droe.wav"),
dɾoi = file.path(units_dir,"droi.wav"),
dɾae = file.path(units_dir,"drae.wav"),
dɾai = file.path(units_dir,"drai.wav"),
dɾao = file.path(units_dir,"drao.wav"),
dɾau = file.path(units_dir,"drau.wav"),
kli = file.path(units_dir,"kli.wav"),
klu = file.path(units_dir,"klu.wav"),
kle = file.path(units_dir,"kle.wav"),
klo = file.path(units_dir,"klo.wav"),
kla = file.path(units_dir,"kla.wav"),
klia = file.path(units_dir,"klia.wav"),
klie = file.path(units_dir,"klie.wav"),
klio = file.path(units_dir,"klio.wav"),
kliu = file.path(units_dir,"kliu.wav"),
klua = file.path(units_dir,"klua.wav"),
klui = file.path(units_dir,"klui.wav"),
kluo = file.path(units_dir,"kluo.wav"),
klea = file.path(units_dir,"klea.wav"),
klei = file.path(units_dir,"klei.wav"),
kleo = file.path(units_dir,"kleo.wav"),
kleu = file.path(units_dir,"kleu.wav"),
kloa = file.path(units_dir,"kloa.wav"),
kloe = file.path(units_dir,"kloe.wav"),
kloi = file.path(units_dir,"kloi.wav"),
klae = file.path(units_dir,"klae.wav"),
klai = file.path(units_dir,"klai.wav"),
klao = file.path(units_dir,"klao.wav"),
klau = file.path(units_dir,"klau.wav"),
kɾi = file.path(units_dir,"kri.wav"),
kɾu = file.path(units_dir,"kru.wav"),
kɾe = file.path(units_dir,"kre.wav"),
kɾo = file.path(units_dir,"kro.wav"),
kɾa = file.path(units_dir,"kra.wav"),
kɾia = file.path(units_dir,"kria.wav"),
kɾie = file.path(units_dir,"krie.wav"),
kɾio = file.path(units_dir,"krio.wav"),
kɾiu = file.path(units_dir,"kriu.wav"),
kɾua = file.path(units_dir,"krua.wav"),
kɾui = file.path(units_dir,"krui.wav"),
kɾuo = file.path(units_dir,"kruo.wav"),
kɾea = file.path(units_dir,"krea.wav"),
kɾei = file.path(units_dir,"krei.wav"),
kɾeo = file.path(units_dir,"kreo.wav"),
kɾeu = file.path(units_dir,"kreu.wav"),
kɾoa = file.path(units_dir,"kroa.wav"),
kɾoe = file.path(units_dir,"kroe.wav"),
kɾoi = file.path(units_dir,"kroi.wav"),
kɾae = file.path(units_dir,"krae.wav"),
kɾai = file.path(units_dir,"krai.wav"),
kɾao = file.path(units_dir,"krao.wav"),
kɾau = file.path(units_dir,"krau.wav"),
ɡli = file.path(units_dir,"gli.wav"),
ɡlu = file.path(units_dir,"glu.wav"),
ɡle = file.path(units_dir,"gle.wav"),
ɡlo = file.path(units_dir,"glo.wav"),
ɡla = file.path(units_dir,"gla.wav"),
ɡlia = file.path(units_dir,"glia.wav"),
ɡlie = file.path(units_dir,"glie.wav"),
ɡlio = file.path(units_dir,"glio.wav"),
ɡliu = file.path(units_dir,"gliu.wav"),
ɡlua = file.path(units_dir,"glua.wav"),
ɡlui = file.path(units_dir,"glui.wav"),
ɡluo = file.path(units_dir,"gluo.wav"),
ɡlea = file.path(units_dir,"glea.wav"),
ɡlei = file.path(units_dir,"glei.wav"),
ɡleo = file.path(units_dir,"gleo.wav"),
ɡleu = file.path(units_dir,"gleu.wav"),
ɡloa = file.path(units_dir,"gloa.wav"),
ɡloe = file.path(units_dir,"gloe.wav"),
ɡloi = file.path(units_dir,"gloi.wav"),
ɡlae = file.path(units_dir,"glae.wav"),
ɡlai = file.path(units_dir,"glai.wav"),
ɡlao = file.path(units_dir,"glao.wav"),
ɡlau = file.path(units_dir,"glau.wav"),
ɡɾi = file.path(units_dir,"gri.wav"),
ɡɾu = file.path(units_dir,"gru.wav"),
ɡɾe = file.path(units_dir,"gre.wav"),
ɡɾo = file.path(units_dir,"gro.wav"),
ɡɾa = file.path(units_dir,"gra.wav"),
ɡɾia = file.path(units_dir,"gria.wav"),
ɡɾie = file.path(units_dir,"grie.wav"),
ɡɾio = file.path(units_dir,"grio.wav"),
ɡɾiu = file.path(units_dir,"griu.wav"),
ɡɾua = file.path(units_dir,"grua.wav"),
ɡɾui = file.path(units_dir,"grui.wav"),
ɡɾuo = file.path(units_dir,"gruo.wav"),
ɡɾea = file.path(units_dir,"grea.wav"),
ɡɾei = file.path(units_dir,"grei.wav"),
ɡɾeo = file.path(units_dir,"greo.wav"),
ɡɾeu = file.path(units_dir,"greu.wav"),
ɡɾoa = file.path(units_dir,"groa.wav"),
ɡɾoe = file.path(units_dir,"groe.wav"),
ɡɾoi = file.path(units_dir,"groi.wav"),
ɡɾae = file.path(units_dir,"grae.wav"),
ɡɾai = file.path(units_dir,"grai.wav"),
ɡɾao = file.path(units_dir,"grao.wav"),
ɡɾau = file.path(units_dir,"grau.wav"),
ɸli = file.path(units_dir,"fli.wav"),
ɸlu = file.path(units_dir,"flu.wav"),
ɸle = file.path(units_dir,"fle.wav"),
ɸlo = file.path(units_dir,"flo.wav"),
ɸla = file.path(units_dir,"fla.wav"),
ɸlia = file.path(units_dir,"flia.wav"),
ɸlie = file.path(units_dir,"flie.wav"),
ɸlio = file.path(units_dir,"flio.wav"),
ɸliu = file.path(units_dir,"fliu.wav"),
ɸlua = file.path(units_dir,"flua.wav"),
ɸlui = file.path(units_dir,"flui.wav"),
ɸluo = file.path(units_dir,"fluo.wav"),
ɸlea = file.path(units_dir,"flea.wav"),
ɸlei = file.path(units_dir,"flei.wav"),
ɸleo = file.path(units_dir,"fleo.wav"),
ɸleu = file.path(units_dir,"fleu.wav"),
ɸloa = file.path(units_dir,"floa.wav"),
ɸloe = file.path(units_dir,"floe.wav"),
ɸloi = file.path(units_dir,"floi.wav"),
ɸlae = file.path(units_dir,"flae.wav"),
ɸlai = file.path(units_dir,"flai.wav"),
ɸlao = file.path(units_dir,"flao.wav"),
ɸlau = file.path(units_dir,"flau.wav"),
ɸɾi = file.path(units_dir,"fri.wav"),
ɸɾu = file.path(units_dir,"fru.wav"),
ɸɾe = file.path(units_dir,"fre.wav"),
ɸɾo = file.path(units_dir,"fro.wav"),
ɸɾa = file.path(units_dir,"fra.wav"),
ɸɾia = file.path(units_dir,"fria.wav"),
ɸɾie = file.path(units_dir,"frie.wav"),
ɸɾio = file.path(units_dir,"frio.wav"),
ɸɾiu = file.path(units_dir,"friu.wav"),
ɸɾua = file.path(units_dir,"frua.wav"),
ɸɾui = file.path(units_dir,"frui.wav"),
ɸɾuo = file.path(units_dir,"fruo.wav"),
ɸɾea = file.path(units_dir,"frea.wav"),
ɸɾei = file.path(units_dir,"frei.wav"),
ɸɾeo = file.path(units_dir,"freo.wav"),
ɸɾeu = file.path(units_dir,"freu.wav"),
ɸɾoa = file.path(units_dir,"froa.wav"),
ɸɾoe = file.path(units_dir,"froe.wav"),
ɸɾoi = file.path(units_dir,"froi.wav"),
ɸɾae = file.path(units_dir,"frae.wav"),
ɸɾai = file.path(units_dir,"frai.wav"),
ɸɾao = file.path(units_dir,"frao.wav"),
ɸɾau = file.path(units_dir,"frau.wav"),
ʃni = file.path(units_dir,"shni.wav"),
ʃnu = file.path(units_dir,"shnu.wav"),
ʃne = file.path(units_dir,"shne.wav"),
ʃno = file.path(units_dir,"shno.wav"),
ʃna = file.path(units_dir,"shna.wav"),
ʃnia = file.path(units_dir,"shnia.wav"),
ʃnie = file.path(units_dir,"shnie.wav"),
ʃnio = file.path(units_dir,"shnio.wav"),
ʃniu = file.path(units_dir,"shniu.wav"),
ʃnua = file.path(units_dir,"shnua.wav"),
ʃnui = file.path(units_dir,"shnui.wav"),
ʃnuo = file.path(units_dir,"shnuo.wav"),
ʃnea = file.path(units_dir,"shnea.wav"),
ʃnei = file.path(units_dir,"shnei.wav"),
ʃneo = file.path(units_dir,"shneo.wav"),
ʃneu = file.path(units_dir,"shneu.wav"),
ʃnoa = file.path(units_dir,"shnoa.wav"),
ʃnoe = file.path(units_dir,"shnoe.wav"),
ʃnoi = file.path(units_dir,"shnoi.wav"),
ʃnae = file.path(units_dir,"shnae.wav"),
ʃnai = file.path(units_dir,"shnai.wav"),
ʃnao = file.path(units_dir,"shnao.wav"),
ʃnau = file.path(units_dir,"shnau.wav"),
ʧi = file.path(units_dir,"chi.wav"),
ʧu = file.path(units_dir,"chu.wav"),
ʧe = file.path(units_dir,"che.wav"),
ʧo = file.path(units_dir,"cho.wav"),
ʧa = file.path(units_dir,"cha.wav"),
ʧia = file.path(units_dir,"chia.wav"),
ʧie = file.path(units_dir,"chie.wav"),
ʧio = file.path(units_dir,"chio.wav"),
ʧiu = file.path(units_dir,"chiu.wav"),
ʧua = file.path(units_dir,"chua.wav"),
ʧui = file.path(units_dir,"chui.wav"),
ʧuo = file.path(units_dir,"chuo.wav"),
ʧea = file.path(units_dir,"chea.wav"),
ʧei = file.path(units_dir,"chei.wav"),
ʧeo = file.path(units_dir,"cheo.wav"),
ʧeu = file.path(units_dir,"cheu.wav"),
ʧoa = file.path(units_dir,"choa.wav"),
ʧoe = file.path(units_dir,"choe.wav"),
ʧoi = file.path(units_dir,"choi.wav"),
ʧae = file.path(units_dir,"chae.wav"),
ʧai = file.path(units_dir,"chai.wav"),
ʧao = file.path(units_dir,"chao.wav"),
ʧau = file.path(units_dir,"chau.wav"),
ski = file.path(units_dir,"ski.wav"),
sku = file.path(units_dir,"sku.wav"),
ske = file.path(units_dir,"ske.wav"),
sko = file.path(units_dir,"sko.wav"),
ska = file.path(units_dir,"ska.wav"),
skia = file.path(units_dir,"skia.wav"),
skie = file.path(units_dir,"skie.wav"),
skio = file.path(units_dir,"skio.wav"),
skiu = file.path(units_dir,"skiu.wav"),
skua = file.path(units_dir,"skua.wav"),
skui = file.path(units_dir,"skui.wav"),
skuo = file.path(units_dir,"skuo.wav"),
skea = file.path(units_dir,"skea.wav"),
skei = file.path(units_dir,"skei.wav"),
skeo = file.path(units_dir,"skeo.wav"),
skeu = file.path(units_dir,"skeu.wav"),
skoa = file.path(units_dir,"skoa.wav"),
skoe = file.path(units_dir,"skoe.wav"),
skoi = file.path(units_dir,"skoi.wav"),
skae = file.path(units_dir,"skae.wav"),
skai = file.path(units_dir,"skai.wav"),
skao = file.path(units_dir,"skao.wav"),
skau = file.path(units_dir,"skau.wav"),
ksi = file.path(units_dir,"ksi.wav"),
ksu = file.path(units_dir,"ksu.wav"),
kse = file.path(units_dir,"kse.wav"),
kso = file.path(units_dir,"kso.wav"),
ksa = file.path(units_dir,"ksa.wav"),
ksia = file.path(units_dir,"ksia.wav"),
ksie = file.path(units_dir,"ksie.wav"),
ksio = file.path(units_dir,"ksio.wav"),
ksiu = file.path(units_dir,"ksiu.wav"),
ksua = file.path(units_dir,"ksua.wav"),
ksui = file.path(units_dir,"ksui.wav"),
ksuo = file.path(units_dir,"ksuo.wav"),
ksea = file.path(units_dir,"ksea.wav"),
ksei = file.path(units_dir,"ksei.wav"),
kseo = file.path(units_dir,"kseo.wav"),
kseu = file.path(units_dir,"kseu.wav"),
ksoa = file.path(units_dir,"ksoa.wav"),
ksoe = file.path(units_dir,"ksoe.wav"),
ksoi = file.path(units_dir,"ksoi.wav"),
ksae = file.path(units_dir,"ksae.wav"),
ksai = file.path(units_dir,"ksai.wav"),
ksao = file.path(units_dir,"ksao.wav"),
ksau = file.path(units_dir,"ksau.wav"),
m = file.path(units_dir,"mOn.wav"),
p = file.path(units_dir,"pOn.wav"),
b = file.path(units_dir,"bOn.wav"),
w = file.path(units_dir,"wOn.wav"),
n = file.path(units_dir,"nOn.wav"),
t = file.path(units_dir,"tOn.wav"),
d = file.path(units_dir,"dOn.wav"),
l = file.path(units_dir,"lOn.wav"),
s = file.path(units_dir,"sOn.wav"),
z = file.path(units_dir,"zOn.wav"),
ɾ = file.path(units_dir,"rOn.wav"),
ʃ = file.path(units_dir,"shOn.wav"),
ʒ = file.path(units_dir,"llOn.wav"),
ʐ = file.path(units_dir,"rrOn.wav"),
ɲ = file.path(units_dir,"nhOn.wav"),
j = file.path(units_dir,"jOn.wav"),
k = file.path(units_dir,"kOn.wav"),
ɡ = file.path(units_dir,"gOn.wav"),
x = file.path(units_dir,"xOn.wav"),
ɸ = file.path(units_dir,"fOn.wav"),
pl = file.path(units_dir,"plOn.wav"),
pɾ = file.path(units_dir,"prOn.wav"),
bl = file.path(units_dir,"blOn.wav"),
bɾ = file.path(units_dir,"brOn.wav"),
tɾ = file.path(units_dir,"trOn.wav"),
dɾ = file.path(units_dir,"drOn.wav"),
kl = file.path(units_dir,"klOn.wav"),
kɾ = file.path(units_dir,"krOn.wav"),
ɡl = file.path(units_dir,"glOn.wav"),
ɡɾ = file.path(units_dir,"grOn.wav"),
ɸl = file.path(units_dir,"flOn.wav"),
ɸɾ = file.path(units_dir,"frOn.wav"),
ʃn = file.path(units_dir,"shnOn.wav"),
ʧ = file.path(units_dir,"chOn.wav"),
sk = file.path(units_dir,"skOn.wav"),
ks = file.path(units_dir,"ksOn.wav"),
Cm = file.path(units_dir,"mCo.wav"),
Cb = file.path(units_dir,"bCo.wav"),
Cn = file.path(units_dir,"nCo.wav"),
Cd = file.path(units_dir,"dCo.wav"),
Cl = file.path(units_dir,"lCo.wav"),
Cs = file.path(units_dir,"sCo.wav"),
Cz = file.path(units_dir,"zCo.wav"),
Cɾ = file.path(units_dir,"rCo.wav"),
Cʃ = file.path(units_dir,"shCo.wav"),
Cʒ = file.path(units_dir,"llCo.wav"),
Cʐ = file.path(units_dir,"rrCo.wav"),
Ck = file.path(units_dir,"kCo.wav"),
Cɡ = file.path(units_dir,"gCo.wav"),
Cx = file.path(units_dir,"xCo.wav"),
Cʧ = file.path(units_dir,"chCo.wav"),
Cks = file.path(units_dir,"ksCo.wav"),
Cɾʂ = file.path(units_dir,"rshCo.wav"),
Cŋ = file.path(units_dir,"ng.wav"),
ue = file.path(units_dir,"ue.wav"),
mue = file.path(units_dir,"mue.wav"),
pue = file.path(units_dir,"pue.wav"),
bue = file.path(units_dir,"bue.wav"),
wue = file.path(units_dir,"wue.wav"),
nue = file.path(units_dir,"nue.wav"),
tue = file.path(units_dir,"tue.wav"),
due = file.path(units_dir,"due.wav"),
lue = file.path(units_dir,"lue.wav"),
sue = file.path(units_dir,"sue.wav"),
zue = file.path(units_dir,"zue.wav"),
ɾue = file.path(units_dir,"rue.wav"),
ʃue = file.path(units_dir,"shue.wav"),
ʒue = file.path(units_dir,"llue.wav"),
ʐue = file.path(units_dir,"rrue.wav"),
ɲue = file.path(units_dir,"nhue.wav"),
jue = file.path(units_dir,"jue.wav"),
kue = file.path(units_dir,"kue.wav"),
ɡue = file.path(units_dir,"gue.wav"),
xue = file.path(units_dir,"xue.wav"),
ɸue = file.path(units_dir,"fue.wav"),
plue = file.path(units_dir,"plue.wav"),
pɾue = file.path(units_dir,"prue.wav"),
blue = file.path(units_dir,"blue.wav"),
bɾue = file.path(units_dir,"brue.wav"),
#tɾue = file.path(units_dir,"true.wav"), #tɾue = file.path(units_dir,"true.wav"), # R reads this as TRUE, so we'd have to figure out another tactic in the IPA conversion, which I'm not going to do. Just don't try and process the word 'trueno' (thunder)
dɾue = file.path(units_dir,"drue.wav"),
klue = file.path(units_dir,"klue.wav"),
kɾue = file.path(units_dir,"krue.wav"),
ɡlue = file.path(units_dir,"glue.wav"),
ɡɾue = file.path(units_dir,"grue.wav"),
ɸlue = file.path(units_dir,"flue.wav"),
ɸɾue = file.path(units_dir,"frue.wav"),
ʃnue = file.path(units_dir,"shnue.wav"),
ʧue = file.path(units_dir,"chue.wav"),
skue = file.path(units_dir,"skue.wav"),
ksue = file.path(units_dir,"ksue.wav"),
P = file.path(units_dir,"pause.wav"),
D = file.path(units_dir,"dot.wav")
)

At this stage, we now convert the IPA string for the tts generator to characters.

to_labels = strsplit(gsub("\\.", " ", tts$breaks_tts), "\\s+")[[1]]

• This code splits the IPA string into characters.
• It begins by converting periods (.) to spaces ().
• It then splits the data by a space (\s+)

Now we ‘index’ our convert vector with to_labels.
If to_labels is c("i","o","a"), then wav_files will be the file paths for i.wav, o.wav, and a.wav.

If this doesn’t make sense, think of convert as a dictionary.
- On the left side are the words (the IPA labels like “i”, “o”, “a”).
- On the right side are the definitions (the file paths like “…/i.wav”, “…/o.wav”, “…/a.wav”).

We then write:

wav_files <- convert[to_labels]

Here, you’re saying: “Go into my dictionary and pull out the entries whose names match what’s in to_labels.”
So if:
to_labels <- c("i","o","a")… then R will look up “i”, “o”, and “a” inside the convert dictionary, and return their matching file paths: "…/i.wav" "…/o.wav" "…/a.wav"

• convert is not a function.

• It’s just a lookup table (dictionary).

• to_labels is your list of “keys”, and R gives you back the “values.”

If a file name is missing, we can have r throw us a warning:

if (any(is.na(wav_files))) {
  warning("Missing audio for: ", paste(to_labels[is.na(wav_files)], collapse = ", "))
}

• This reads, if there are any NAs (is.na) in the wav_files object, then…

• throw the following warning “Missing audio for”

• and then paste the name of the NA file in wave_files.

• Separate each one by a comma ,.



8 Loading and stitching sound files

Now we’re going to load three libraries that deal with sound.

library(tuneR)
library(audio)
library(seewave)

The tuneR package is what allows R to work directly with audio files, especially .wav files. It lets us read sounds into R, manipulate them, and write them back out again. For example, when we load a recorded syllable or segment, readWave() turns the file into a special Wave object that stores all the details of the sound—its samples, sampling rate, number of channels (mono or stereo), and bit depth. This makes it possible to cut, join, or otherwise modify the recordings within R.

By contrast, the audio package is focused on playback. Once we’ve created or edited a sound in R, the audio package provides the connection to our computer’s sound system so that we can hear it immediately. Together, the two packages complement each other: tuneR handles sound files and data, while audio makes it possible to listen to what we’ve built.

The seewave package is designed for analysing and visualising sounds. While tuneR gives us the raw ability to load and save audio, seewave adds specialised tools for looking inside the signal. With functions like oscillo() for viewing the waveform, spec() for plotting a frequency spectrum, and spectro() for creating spectrograms, it allows us to see how sounds vary across time and frequency. These visualisations are especially useful in linguistics and phonetics, since they let us connect what we hear with measurable patterns in the acoustic signal. In short, seewave is the package that helps us see sound, not just hear it.

tuneR is a required library for the tts generator
It Reads .wav into R (readWave()), writes them out (writeWave()), and creates/modifies Wave objects.
We will use it to read in our segment and syllable tokens.

ai=readWave("C:\\Users\\mikey\\Dropbox\\Courses\\Computational Linguistics - LING 349 Fall\\Week 9 & 10 - TTS\\tokens\\ai.wav")

seewave is not essential to the tts generator, but it’s nice to have
It plots waveforms (oscillo()), spectra (spec()), and spectrograms (spectro()).

oscillo(ai)
spec(ai)
spectro(ai, flim = c(0, 5))

audio is needed to playback inside R.
Functions like audioSample() and play() let you listen to sounds without saving them and opening them externally.

play(ai)

We’re going to use the data in our wave_files object, and read in each of the associated sound tokens in order.
We can do this using the lapply function.

wavs <- lapply(wav_files, readWave)

• lapply loops over a list (wav_files) and applys a function (readWave) to each element.

Now we just need to stitch them together

sound  <- do.call(c, lapply(wavs, function(w) w@left))

• do.call(c, list_of_vectors) is a trick that says: “take this list of vectors (the wave forms in their numeric format) and feed them all into c() as separate arguments. (the numbers of wave form 1, the numbers of wave form 2, the numbers of wave form 3 etc.”

• wavs is a list of Wave objects we just made.

• lapply(..., function(w) w@left) means:
  • Take each element of wavs (call it w).

  • Extract the @left slot (the left channel’s numeric samples).
• The result is a list of numeric vectors, one per audio file.

  Now we simply play the concatenate file!


play(sound)

Then you can create as a .wav file if you’d like.

out = Wave(left = sound,
            samp.rate = 44100, bit = 16)

And then save it to your HD.

writeWave(out, "C:/Courses/CompLING/TTS/out.wav")
